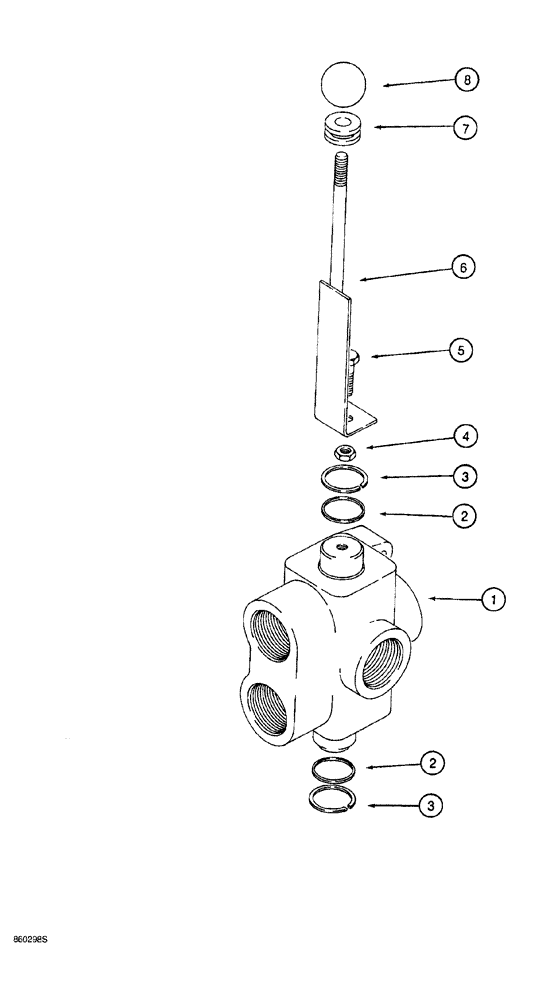

Запчасти Case 760 (08-132) - HYDRA-BORER AND BACKHOE SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

L55038

VALVE

ASSEMBLY, selector, Hydra-Borer and backhoe, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL, selector valve

1шт.

2

R24866

RING

SEAL quad

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

spool #100, Ext, Crescent

2шт.

4

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

H672589

HANDLE

ROD control, selector valve

1шт.

7

A23870

GROMMET

selector valve control rod

1шт.

8

A61683

BUTTON

KNOB selector valve rod

1шт.
