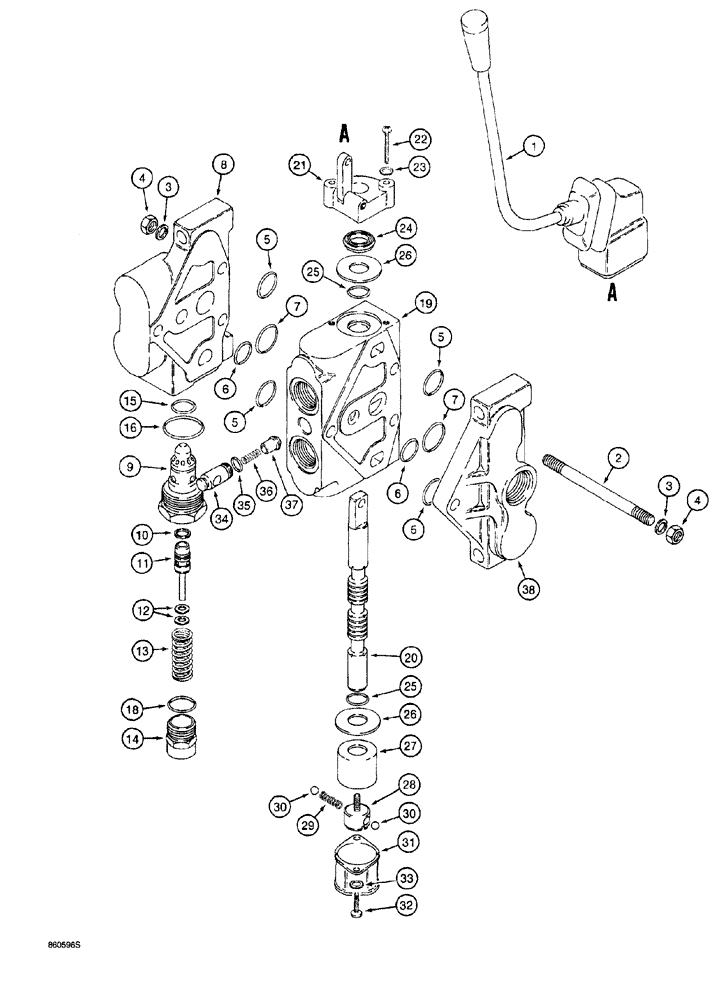

Запчасти Case 760 (08-128) - REMOTE HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

H672286

VALVE

ASSEMBLY, control, remote hydraulic, Hydra-Borer or hydraulic tool, Includes: Ref. 1 - 38

1шт.

1

N13756

HANDLE

control valve, includes linkage

1шт.

H663898

KIT

STUD ASSEMBLY, tie, valve sections, also includes H644914 valve section seal repair kit, Refs. 5 - 7, Includes: Ref. 2 - 7

1шт.

2

H398693

TIE-ROD

ROD tie, valve sections

3шт.

3

492-11025

LOCK WASHER,1/4"

6шт.

4

425-114

NUT,1/4"-28, G5

6шт.

H644914

KIT

seal repair, no longer available, order 1329643C1

2шт.

1329643C1

O-RING KIT

O-ring, may include extra O-rings not required for this application, Includes: Ref. 5 - 7

2шт.

5

A55911

O-RING,0.807" ID

valve section, 13/16 inch (20 mm) ID

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING valve section, 5/8 inch (16 mm) ID

1шт.

7

S91469

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

valve section, 7/8 inch (22 mm) ID

1шт.

N13755

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, inlet and outlet, control valve, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

SECTION inlet and outlet, control valve

1шт.

H653071

VALVE, PRESSURE RELI

EF ASSEMBLY, main, Includes: Ref. 9 - 18

1шт.

9

NSS

NOT SOLD SEPARAT

BODY main relief valve

1шт.

10

135061A1

SEAL

square, poppet, replaces N14120

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

12

H398644

BLOCK

SHIM, 0.003 inch (0.08 mm) thick

1шт.

12

H398651

BLOCK

SHIM, 0.020 inch (0.51 mm) thick

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING main relief valve

1шт.

14

NSS

NOT SOLD SEPARAT

CAP main relief valve

1шт.

H644864

SEAL KIT

main relief valve, Includes: Ref. 15 - 18

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

18

H398685

O-RING

3/4 inch (19 mm) ID

1шт.

N13757

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, body, control valve, working, Includes: Ref. 19 - 37

1шт.

19

NSS

NOT SOLD SEPARAT

BODY control valve, working section

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

N13944

SUPPORT

BRACKET ASSEMBLY lever mounting, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET lever mounting

1шт.

22

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

machine, pan head slotted, 1/4 NC x 1-1/4 inch

2шт.

23

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

H644849

SEAL

KIT spool, Includes: Ref. 24 and 25

1шт.

24

H401232

SPACER

WIPER spool

1шт.

25

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

26

N13945

PLATE

WASHER flat, special

2шт.

N13759

KIT

DETENT ASSEMBLY, control valve, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE detent

1шт.

28

NSS

NOT SOLD SEPARAT

DETENT valve spool

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING detent

1шт.

30

NSS

NOT SOLD SEPARAT

BALL detent

2шт.

H401182

CAP

ASSEMBLY, spool end, no longer available, order components, Includes: Ref. 31 - 33

1шт.

31

H438212

CAP

spool, end

1шт.

32

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

33

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

1329635C1

VALVE POPPET

ASSEMBLY, check, control valve, replaces H644880, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

35

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16 inch wide

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET check valve

1шт.

38

N13758

COVER

control valve

1шт.
