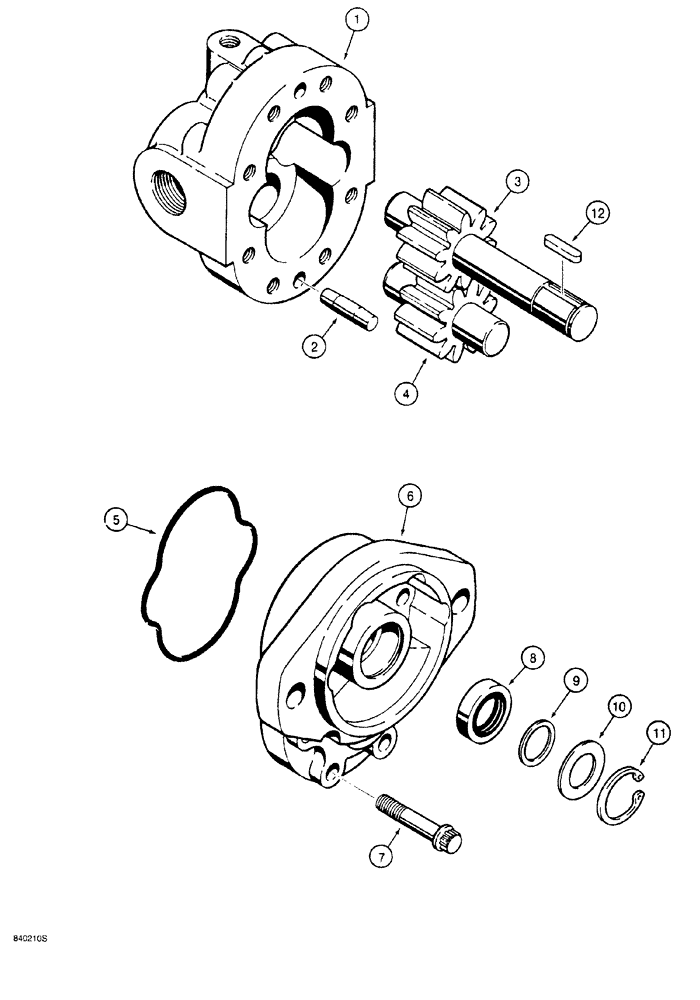

Запчасти Case 760 (08-126) - HYDRA-BORER HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

H654814

MOTOR

ASSEMBLY, hydraulic, Hydra-Borer, Includes: Ref. 1 - 12

1шт.

HR654814

REMAN-HYD MOTOR

ASSEMBLY, Hydra-Borer, remanufactured, component parts shown on this Fig. do not apply to the remanufactured assembly

1шт.

HC654814

CORE-MONITOR

RETURN NUMBER, use this part number to return the motor core for credit when using a remanufactured assembly

1шт.

1

H660316

HOUSING

motor

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

dowel, housing

2шт.

3

H660332

GEAR

drive, must also replace H660324 driven gear (Ref. 4) as a matched set

1шт.

4

H660324

GEAR

driven, must also replace H660332 drive gear (Ref. 3) as a matched set

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

1шт.

6

N13533

PLATE

COVER pump housing

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

12 point flange, 5/16 x 1-1/2 inch, grade 8

8шт.

8

H263608

SEAL

shaft, output

1шт.

9

H418004

WASHER

backup

1шт.

10

H94490

WASHER

special

1шт.

11

100-21112

SNAP RING,1.125", Int, #112

Seal

1шт.

12

H413575

KEY

drive shaft

1шт.
