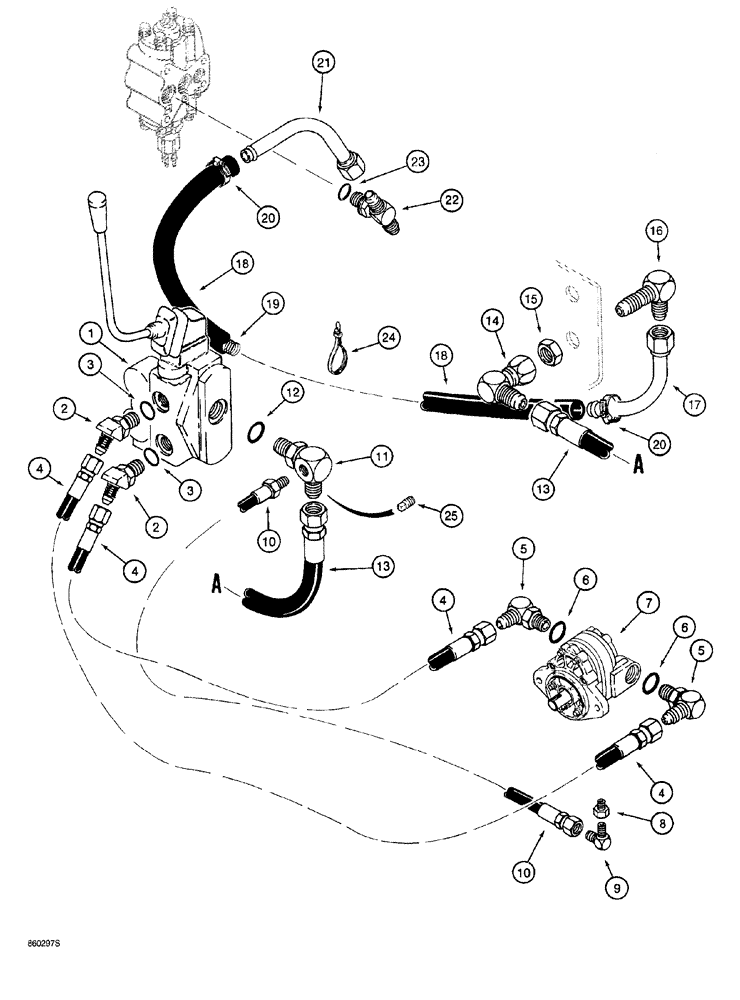

Запчасти Case 760 (08-124) - HYDRA-BORER HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRA-BORER MOTOR AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

H672286

VALVE

ASSEMBLY, control, remote hydraulic, Hydra-Borer or hydraulic tool, parts list Figs. 8-128 and 8-130, mounting hardware on Fig. 8-122

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D20358

HOSE

46 inch (1168 mm) long, control valve to Hydra-Borer drive motor

2шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

H654814

MOTOR

ASSEMBLY, hydraulic, Hydra-Borer, parts list Fig. 8-126, mounting hardware on Fig. 9-104

1шт.

8

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER pipe, 1/4 male x 1/8 inch female

1шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

10

H209023

HOSE ASSY.

59 inch (1499 mm) long, motor drain

1шт.

11

H275586

FITTING

ELBOW, 90 degree, adjustable, special, Includes: Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

H282863

HYDRAULIC HOSE,19.05 mm ID x 762.00 mm, SAE 100R1

Control valve to bulkhead elbow

1шт.

14

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

16

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

17

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return

1шт.

18

H212951

HOSE

24 inch (610 mm) long, cut from H379214 bulk hose, return, see below

1шт.

19

H309906

SPRING

12 inch (305 mm) long

1шт.

20

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

21

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return

1шт.

22

218-5503

TEE,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring Br

TEE, 7/8-14 adj. O-ring branch x 1-1/16-12 inch flare x flare, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

25

221-841

PLUG

hex socket, 1/4 inch PT, installed in Ref. 11 elbow when Hydra-Borer is not used, if used

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 18

1шт.
