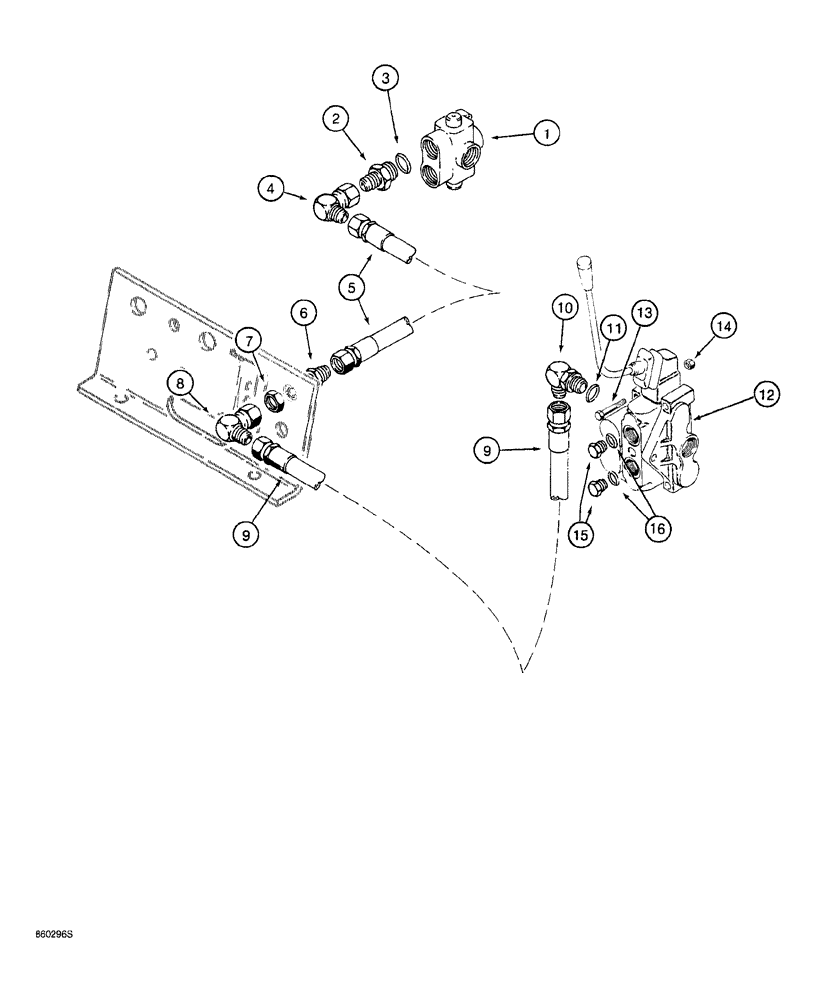

Запчасти Case 760 (08-122) - HYDRA-BORER HYDRAULIC CIRCUIT, SELECTOR VALVE TO CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

L55038

VALVE

ASSEMBLY, selector, Hydra-Borer and backhoe, parts list Fig. 8-132

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Selector Valve to Control Valve

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1-1/16-12 inch flare x bulkhead flare

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

9

D55773

HOSE

20-1/2 inch (521 mm) long, bulkhead elbow to control valve

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

H672286

VALVE

ASSEMBLY, control, remote hydraulic, Hydra-Borer or hydraulic tool, parts list Figs. 8-128 and 8-130

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

2шт.

15

86512512

PLUG,7/8" - 14 ORB

Installed in control valve when Hydra-Borer is not used, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
