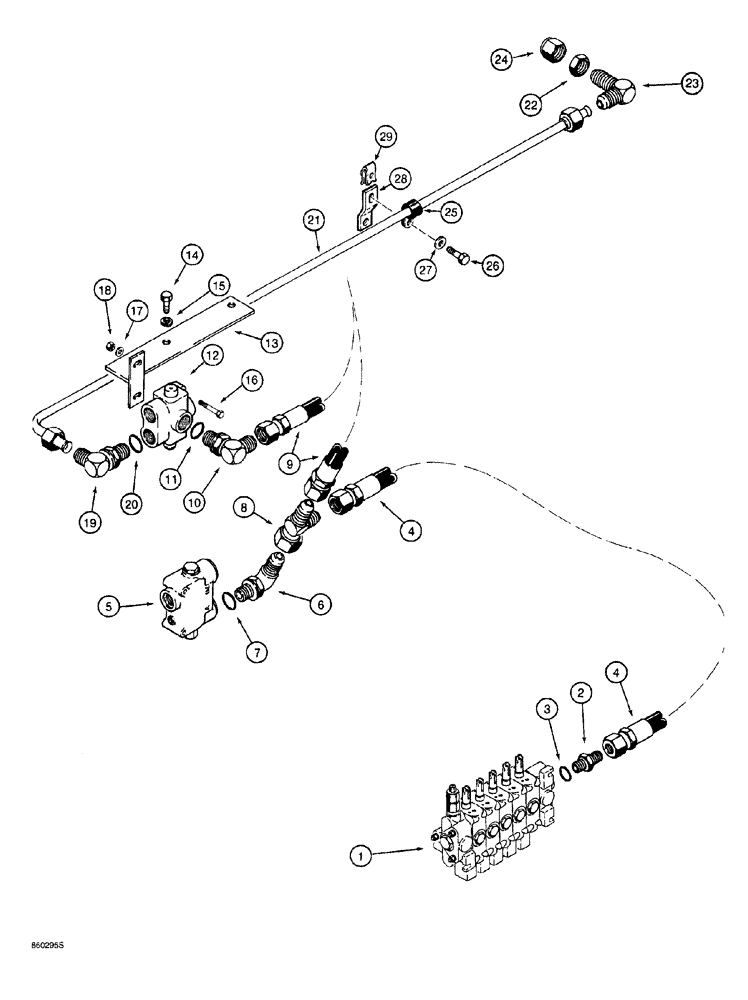

Запчасти Case 760 (08-120) - HYDRA-BORER HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE TO SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

L74334

PIPE

33 inch (838 mm) long, power beyond

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY, priority flow divider, see Figs.5-38 and 5-40 for correct valve assembly and components

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

9

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve to Selector Valve

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-ring boss, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

L55038

VALVE

ASSEMBLY, selector, Hydra-Borer and backhoe, parts list Fig. 8-132

1шт.

13

H672506

BRACKET

selector valve mounting, mounts on left-hand side of unit using existing transmission mounting hardware (Refs. 14 and 15 below)

1шт.

14

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

15

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

16

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

2шт.

19

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-ring boss, Includes: Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

backhoe supply line

1шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

23

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

Hex, Not used when unit is equipped with a backhoe

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

H426775

WASHER

flat, special, hardened

1шт.

28

H435758

SUPPORT

tube

1шт.

29

H346650

NUT

U-type, 5/16 inch NC, special

1шт.
