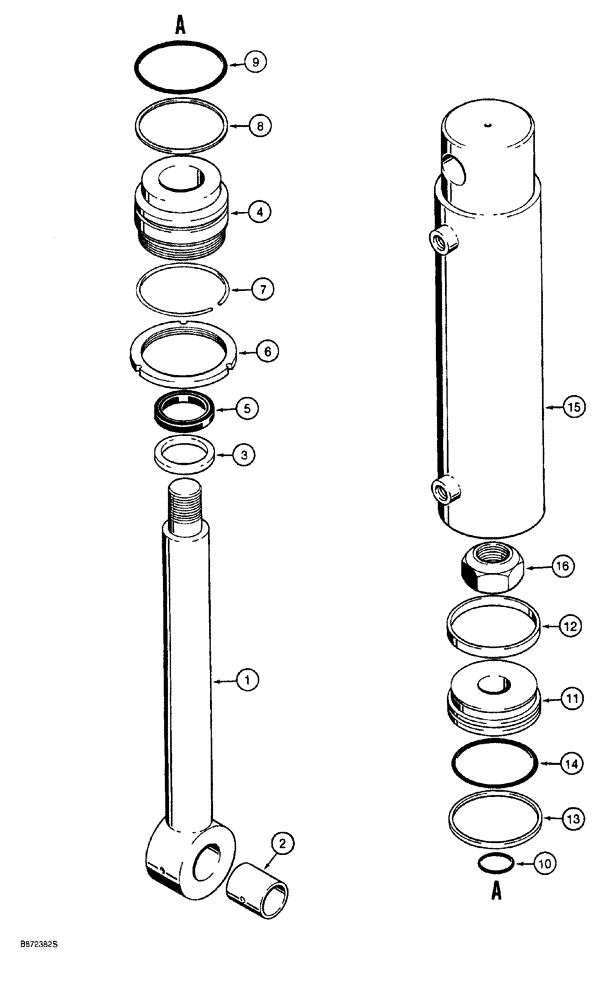

Запчасти Case 760 (08-116) - TRENCHER BOOM LIFT CYLINDER, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

H672823

CYLINDER ASSY.

3-1/2 (89) ID x 10-1/4 inch (260 mm) stroke, trencher boom lift, Includes: Ref. 1 - 16

2шт.

N14819

STEM

ROD ASSEMBLY, piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

2

H220624

RING

BUSHING piston rod

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

4

N14817

GLAND

cylinder

1шт.

5

H221440

SEAL

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

6

573697R1

BEARING LOCK NUT

special, gland retaining

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

7

T52507

RING, SNAP

RING SNAP locking, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

9

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

10

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

11

N14816

PISTON

cylinder

1шт.

12

N14128

RING, SNAP

RING SNAP wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

13

H94326

SEAL

piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

14

238-6235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 6, 90 Duro

Outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N14820

1шт.

15

N14818

JACK BODY

TUBE cylinder

1шт.

16

232-24020

LOCK NUT,1 1/4"-12, GB

1шт.

N14820

SEAL KIT

cylinder seal repair, Includes: Ref. 3, 5 - 10 and 12 - 14

1шт.
