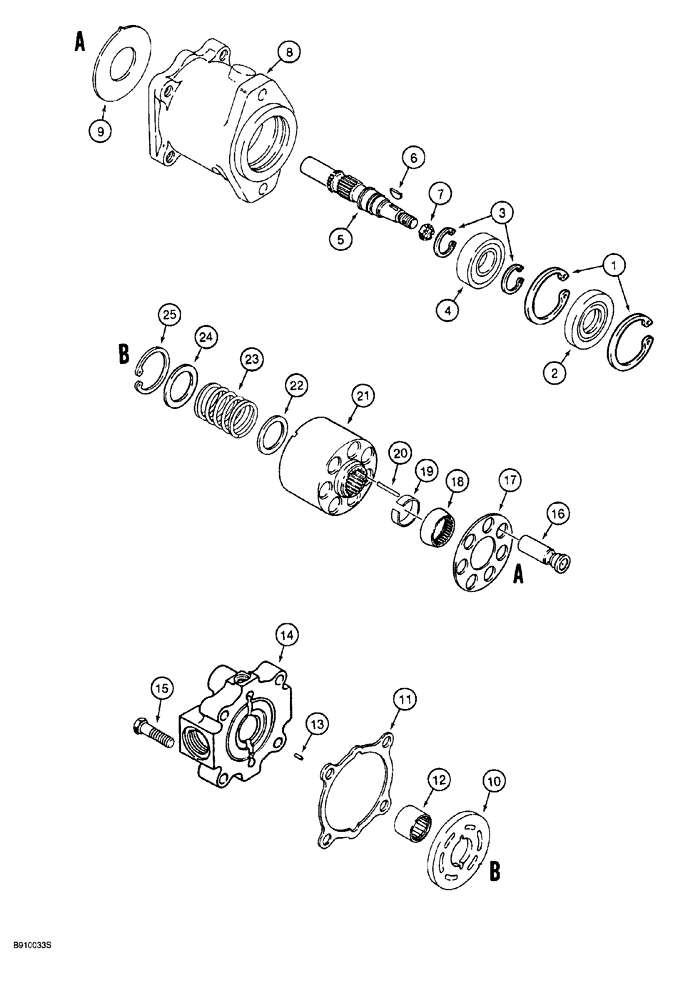

Запчасти Case 760 (08-110) - TRENCHER DRIVE MOTOR - H673912, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

H673912

MOTOR, HYDRAULIC

ASSEMBLY, trencher drive, Sunstrand part No. M46-3108, Includes: Ref. 1 - 25

1шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Seal

2шт.

2

N14103

SEAL

shaft

1шт.

3

100-11137

SNAP RING,#137, Ext

Bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball, shaft

1шт.

5

H437039

SHAFT

motor

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Shaft

1шт.

7

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

9

N14617

WASHER

PLATE thrust, piston

1шт.

10

N13197

PLATE

wear

1шт.

11

N13198

GASKET

cover

1шт.

12

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

13

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

14

NSS

NOT SOLD SEPARAT

COVER motor

1шт.

15

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, replaces 4902/10015, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

17

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

18

115942A1

GUIDE

retainer, replaces 4902/10008

1шт.

19

115943A1

SNAP RING

RING retaining, guide, replaces 4902/10009

1шт.

20

NSS

NOT SOLD SEPARAT

PIN retaining, Serial Range: guide-shaft

3шт.

21

115944A1

CYLINDER BLOCK

replaces 4902/10011

1шт.

22

115946A1

WASHER

WASHER spring, block end, replaces 4902/10012

1шт.

23

115948A1

SPRING

cylinder block, replaces 4902/10013

1шт.

24

115950A1

WASHER

WASHER spring, cover end, replaces 4902/10014

1шт.

25

NSS

NOT SOLD SEPARAT

RING snap, spring

1шт.
