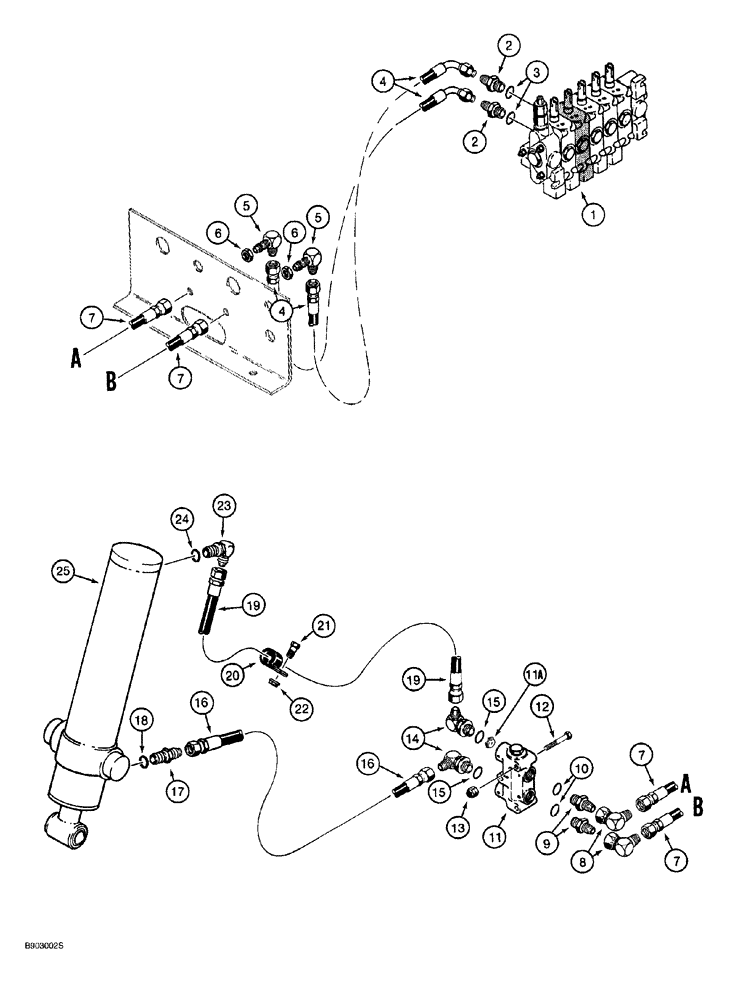

Запчасти Case 760 (08-106) - QUAD TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, TRENCHERS WITH SINGLE (EXTERNAL) BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H434077

HOSE

35-3/8 inch (900 mm) long, control, Serial Range: valve-bulkhead

2шт.

5

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

6

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

2шт.

7

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Lockout Valve to Bulkhead

2шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

H672547

VALVE

ASSEMBLY, lockout, parts list Fig. 8-114, Includes: Ref. 11A

1шт.

11a

H270603

ORIFICE

PLATE, 0.055 inch, included with H672547 valve assembly, see Fig. 8-114 for complete listing of valve components

1шт.

12

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

G35438

HYDRAULIC HOSE,25mm ID x 2000mm L, SAE 100R1

Lockout valve to trencher boom lift cylinder, Rod end, Replaces H168658

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 18

1шт.

19

D81836

HOSE

16 inch (406 mm) long, lockout valve to trencher boom lift cylinder, closed end

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 24

1шт.

25

H672822

CYLINDER

ASSEMBLY, 4 (102) ID x 16-1/2 inch (419 mm) stroke, trencher boom lift, parts list Fig. 8-118, see Fig. 9-52 for cylinder mounting, no longer available, order 221702A1 cylinder assy.

1шт.

25

221702A1

CYLINDER

ASSEMBLY, 4 (102) ID x 16-1/2 inch (419 mm) stroke, trencher boom lift, parts list Fig. 8-118, see Fig. 9-52 for cylinder mounting

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
