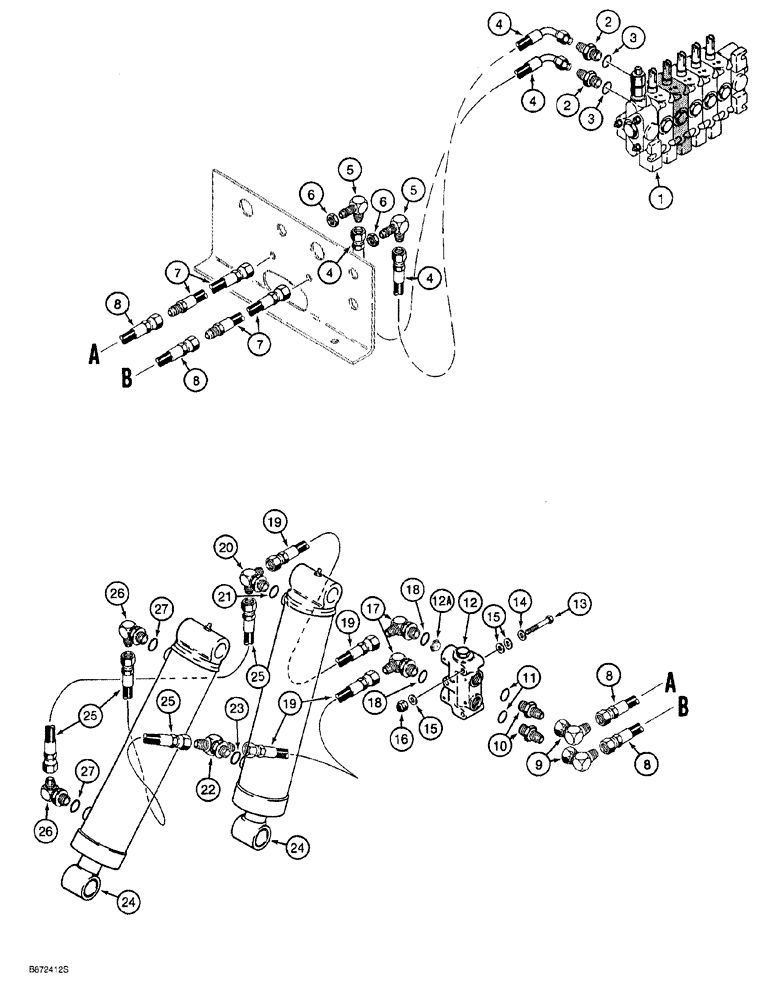

Запчасти Case 760 (08-100) - OFFSET TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H434077

HOSE

35-3/8 inch (900 mm) long, control, Serial Range: valve-bulkhead

2шт.

5

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

6

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

2шт.

7

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

Bulkhead to Lockout Valve Hose

2шт.

8

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Hose to Lockout Valve

2шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

H672547

VALVE

ASSEMBLY, lockout, parts list Fig. 8-114, Includes: Ref. 12A

1шт.

12a

H270603

ORIFICE

PLATE, 0.055 inch, included with H672547 valve assembly, see Fig. 8-114 for complete list

1шт.

13

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

14

H426775

WASHER

flat, special, hardened

2шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

6шт.

16

232-4115

LOCK NUT,5/16"-18, GC

2шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

D81836

HOSE

16 inch (406 mm) long, lockout, Serial Range: valve-cylinders

2шт.

20

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Special, Incl. Ref.21

1шт.

22

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj. O-ring branch x flare x flare, Includes: Ref. 23

1шт.

24

H672823

CYLINDER ASSY.

3-1/2 (89) ID x 10-1/4 inch (260 mm) stroke, trencher boom lift, parts list Fig. 8-116, see Fig. 9-50 for mounting

2шт.

25

D81836

HOSE

16 inch (406 mm) long, Serial Range: cylinder-cylinder

2шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 27

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
