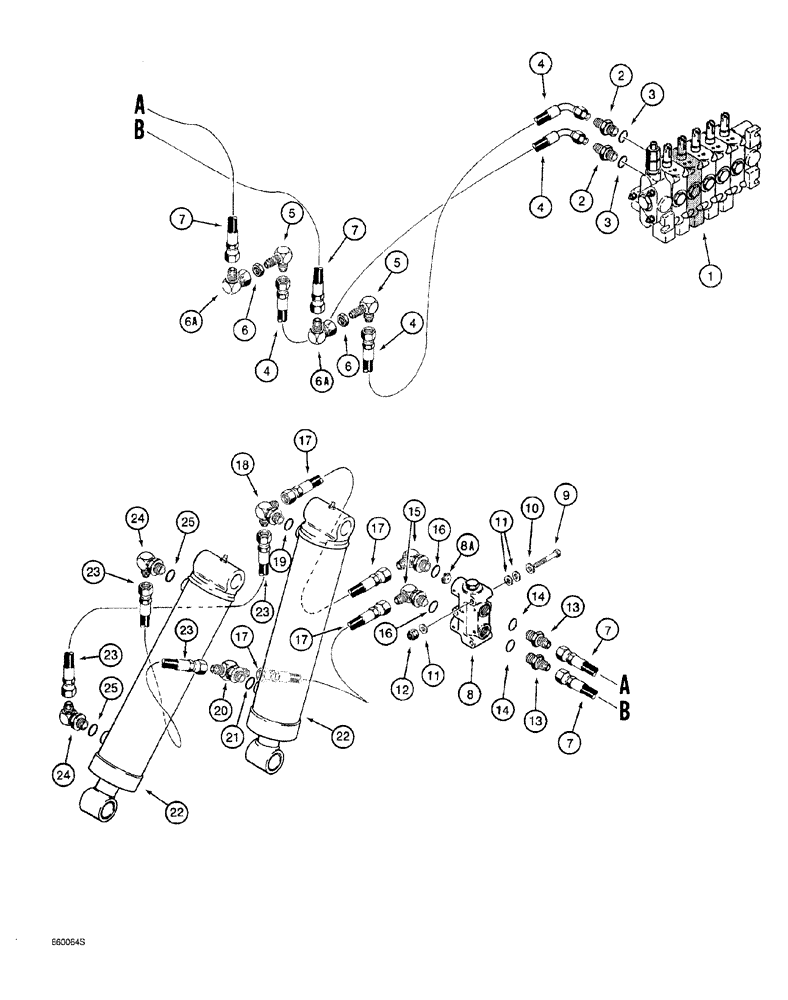

Запчасти Case 760 (08-096) - CENTERLINE TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, TRENCHERS WITH DUAL (INTERNAL) BOOM LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H434077

HOSE

35-3/8 inch (900 mm) long, control, Serial Range: valve-bulkhead

2шт.

5

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

6

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

2шт.

6a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

7

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Bulkhead to Lockout Valve

2шт.

8

H672547

VALVE

ASSEMBLY, lockout, parts list Fig. 8-114, Includes: Ref. 8A

1шт.

8a

H270603

ORIFICE

PLATE, 0.055 inch, included with H672547 valve assembly, see Fig. 8-114 for complete list

1шт.

9

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

10

H426775

WASHER

flat, special, hardened

2шт.

11

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

6шт.

12

232-4115

LOCK NUT,5/16"-18, GC

2шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

D81836

HOSE

16 inch (406 mm) long, lockout, Serial Range: valve-cylinders

2шт.

18

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Special, Incl. Ref. 19

1шт.

20

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj. O-ring branch x flare x flare, Includes: Ref. 21

1шт.

22

H672823

CYLINDER ASSY.

3-1/2 (89) ID x 10-1/4 inch (260 mm) stroke, trencher boom lift, parts list Fig. 8-116, mounting parts on Fig. 9-50

2шт.

23

D81836

HOSE

16 inch (406 mm) long, Serial Range: cylinder-cylinder

2шт.

24

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4-16 adj. O-ring branch x 9/16-18 inch flare x flare, Includes: Ref. 25

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
