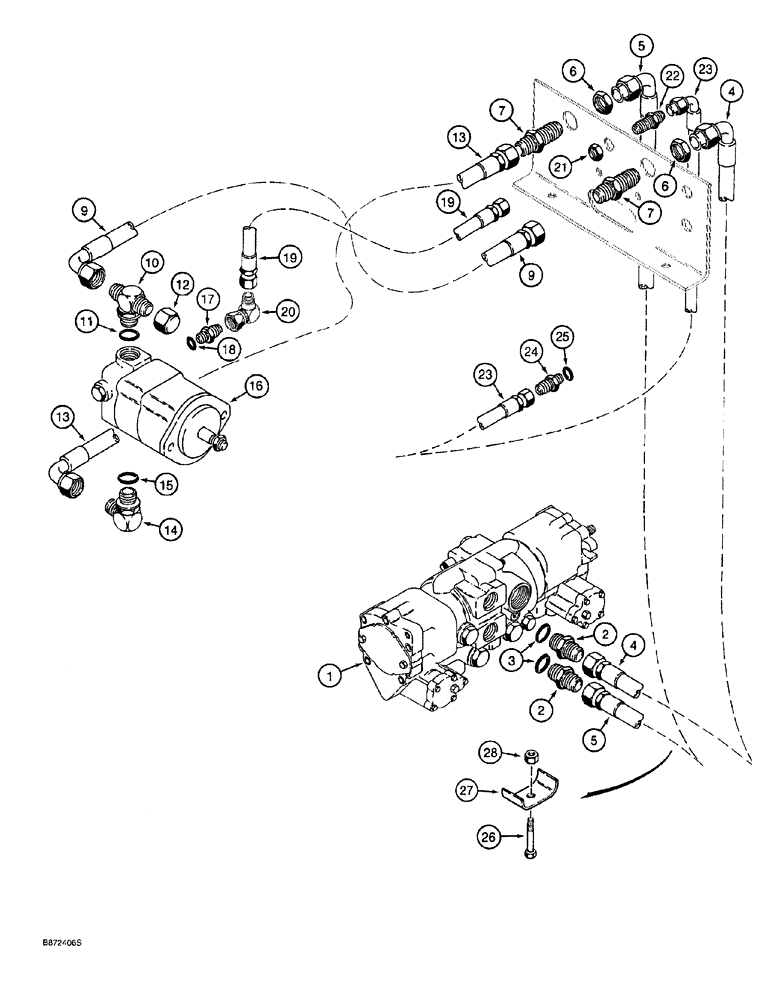

Запчасти Case 760 (08-090) - OFFSET TRENCHER DRIVE HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, parts list Figs. 6-14 through 6-24, see Fig. 6-12 for identification

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Straight, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

H433606

HOSE

76 inch (1925 mm) long, tandem pump "C" port to right-hand bulkhead adapter

1шт.

5

H433607

HOSE

76 inch (1925 mm) long, tandem pump "D" port to left-hand bulkhead adapter

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

7

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

straight, 1-5/16-12 inch flare x bulkhead flare

1шт.

9

H433136

HOSE

44 inch (1125 mm) long, right-hand adapter to trencher drive motor

1шт.

10

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch adj. O-ring branch x flare x flare, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

218-758

CAP,37 Degree, 1 5/16"-12

CAP hex, 1-5/16-12 inch

1шт.

13

H433685

HOSE

38-3/8 inch (975 mm) long, left-hand adapter to trencher drive motor

1шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

MOTOR ASSEMBLY, trencher drive, see Figs. 8-108 through 8-112 for correct assembly and components

1шт.

17

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

Return, Motor Drain, Trencher Drive Motor to Bulkhead Plate

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

22

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight, 7/8-14 inch flare x bulkhead flare

1шт.

23

H433208

HOSE ASSY.

26 inch (650 mm) long, return, motor drain, bulkhead plate to ground drive motor

1шт.

24

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

1шт.

27

H231878

CLAMP

hoses, used to clamp items 4 and 5 to underside of right-hand transmission mounting bracket

1шт.

28

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

1шт.
