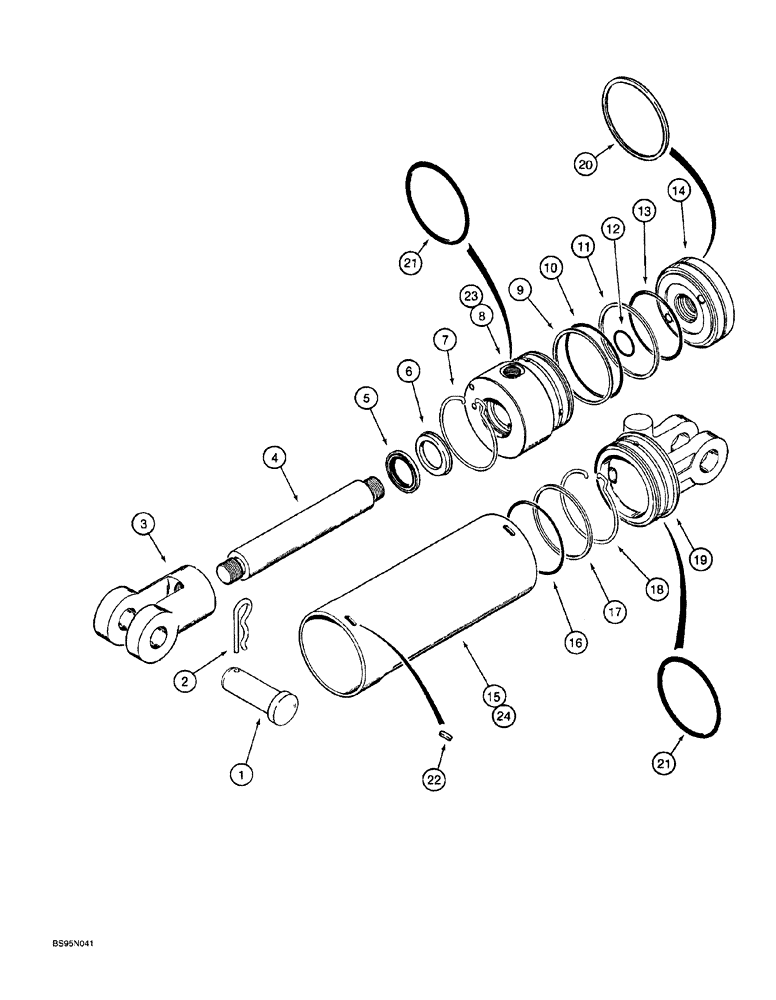

Запчасти Case 760 (08-087A) - BACKFILL BLADE TILT CYLINDERS, H673830 AND 101645A1 (35) - HYDRAULIC SYSTEMS

H673830

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, backfill blade tilt, Cessna/Eaton part No. 56243-KAB, no longer available, order 101645A1

1шт.

101645A1

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, Eaton Part No. 580-0025-001, Includes: Ref. 1 - 24

1шт.

1

127-216

CLEVIS PIN,1" x 3 1/4'"

Used with H673830 cylinder

2шт.

1a

102910A1

PIN

upset clevis, not shown

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining, Used with either Ref. 1, 127-216 pin or Ref. 1A, 102910A1

2шт.

3

102908A1

END

piston rod, replaces H436901

1шт.

4

102907A1

ROD

piston, replaces H436900

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

7

NSS

NOT SOLD SEPARAT

LOCK gland, nylon

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

8

H436902

BEARING

GLAND cylinder, used with H673830

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

10

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

11

A52305

RING, PISTON

outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

14

102905A1

PISTON

cylinder, replaces H436898

1шт.

15

H436899

TUBE ASSY.

cylinder, used with H673830, no longer available, order Ref. 23, 102909A1 gland and Ref. 24, 102909A1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING cylinder tube

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

17

NSS

NOT SOLD SEPARAT

RING backup, cylinder tube O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

18

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

19

102904A1

HEAD

cylinder, replaces H436897

1шт.

20

NSS

NOT SOLD SEPARAT

RING wear, piston, used with H673830 cylinder only

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, tube to gland and head, used with H673830 cylinder only

2шт.

22

NSS

NOT SOLD SEPARAT

COVER slot, locking ring, used with H673830 cylinder only

2шт.

23

102909A1

BEARING

GLAND cylinder, used on 101645A1 cylinder or used with Ref. 24, 102906A1 tube to replace Ref. 15, H436899 tube in H673830 assembly

1шт.

Use both Refs. 23 and 24 to replace Ref. 15, tube on H673830 cylinder assy. Refs. 23 and 24 may be replaced singularly on 101645A1

1шт.

24

102906A1

TUBE

cylinder

1шт.

Use both Refs. 23 and 24 to replace Ref. 15, tube on H673830 cylinder assy. Ref. 23 and 24 may be replaced singularly on 101645A1

1шт.

H673838

SEAL

cylinder seal repair, Includes: Ref. 5 - 7, 9 - 13 and 16 - 18

1шт.
