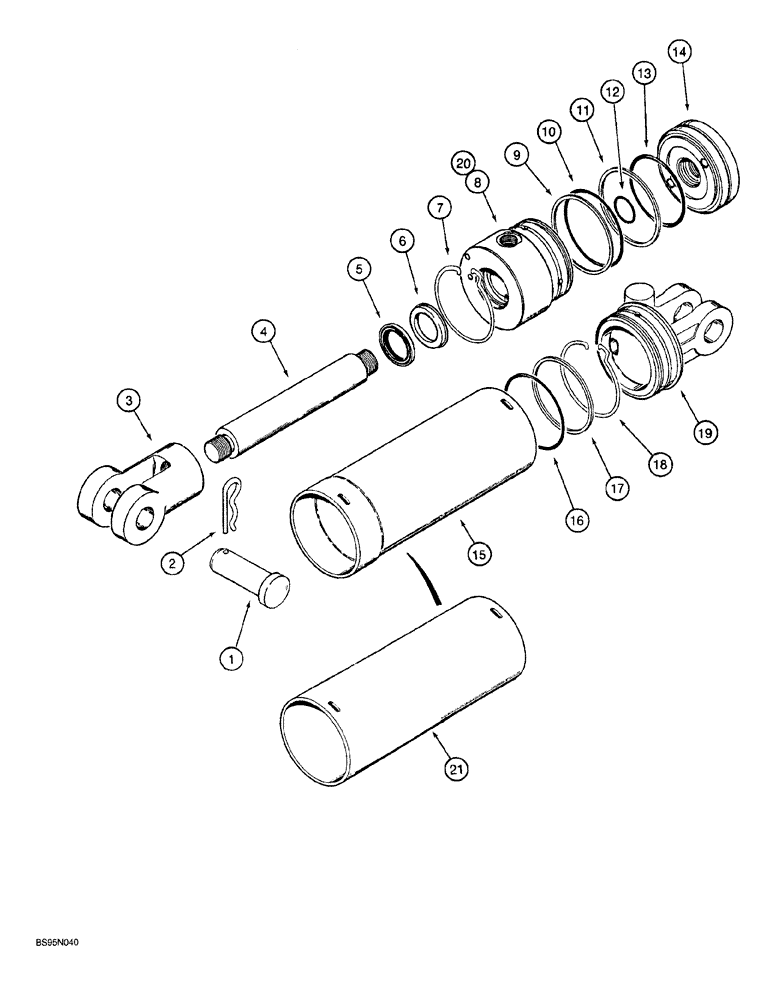

Запчасти Case 760 (08-086) - BACKFILL BLADE TILT CYLINDERS, H670984 (35) - HYDRAULIC SYSTEMS

H670984

CYLINDER

ASSEMBLY, 3 (76) ID x 8 inch (203 mm) stroke, backfill blade lift, Cessna/Eaton part No. 51303-MSFP, no longer available, order 101644A1 cylinder shown on Fig. 8-85A, Includes: Ref. 1 - 21

1шт.

1

D36819

PIN,30.23mm OD x 111.25mm L

clevis

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining

2шт.

3

102908A1

END

piston rod, replaces N13592

1шт.

4

102907A1

ROD

piston, replaces N13593

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

7

NSS

NOT SOLD SEPARAT

LOCK gland, nylon

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

8

N13594

GLAND

cylinder, no longer available, order Ref. 20, 102909A1, and Ref. 21, 102906A1 tube

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

10

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

11

A52305

RING, PISTON

outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

14

102905A1

PISTON

cylinder, replaces N13595

1шт.

15

N13596

TUBE ASSY.

cylinder, no longer available, order Ref. 20, 102909A1 gland and Ref. 21, 102906A1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING cylinder tube

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

17

NSS

NOT SOLD SEPARAT

RING backup, cylinder tube O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

18

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673838

1шт.

19

102904A1

HEAD

cylinder, replaces N13597

1шт.

20

102909A1

BEARING

GLAND cylinder

1шт.

21

102906A1

TUBE

cylinder

1шт.

H673838

SEAL

cylinder seal repair, replaces N13598, Includes: Ref. 5 - 7, 9 - 13 and 16 - 18, other seals not required in this application

1шт.
