(08-085A) - BACKFILL BLADE LIFT CYLINDERS, H673829 AND 101644A1

Запчасти Case 760 (08-085A) - BACKFILL BLADE LIFT CYLINDERS, H673829 AND 101644A1 (35) - HYDRAULIC SYSTEMS

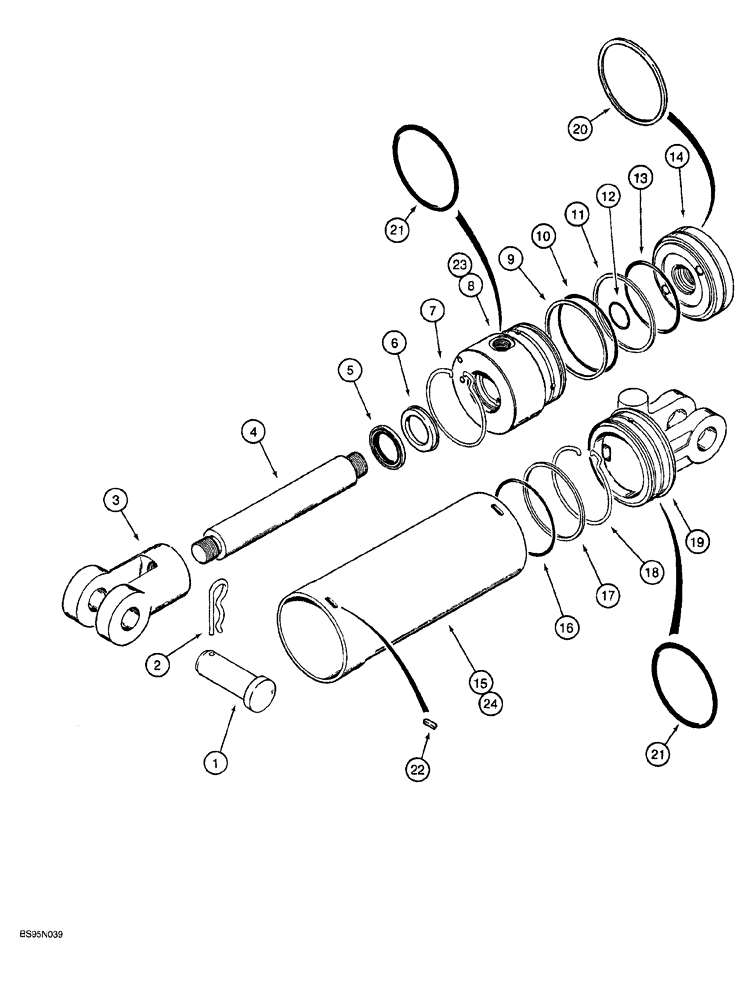

Схема запчастей Case 760 - (08-085A) - BACKFILL BLADE LIFT CYLINDERS, H673829 AND 101644A1 (35) - HYDRAULIC SYSTEMS
24
12
20
3
11
6
18
7
14
9
23
22
21
16
5
1
4
8
15
17
21
19
2
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H673829

CYLINDER

ASSEMBLY, 3 (76) ID x 8 inch (203 mm) stroke, backfill blade lift, Cessna/Eaton part No. 51303-MSFP, no longer available, order 101644A1 cylinder shown on Fig. 8-85A

1шт.

101644A1

CYLINDER

ASSEMBLY, 3 (76) ID x 8 inch (203 mm) stroke, backfill blade lift, Eaton Part No. 580-0041-001, Includes: Ref. 1 - 24

1шт.

1

N14001

CLEVIS PIN

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining

2шт.

3

102694A1

END

cylinder rod, replaces H436910

1шт.

4

102692A1

ROD

piston, replaces H436909

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

8

H436688

GLAND

cylinder, used with H673829, no longer available, order Ref. 23, 102686A1 gland and Ref. 24, 102690A1 tube

1шт.

9

H745760

WASHER

backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

10

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

11

H120188

RING

backup, piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

12

T52486

O-RING

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

14

H436684

JACK PISTON

cylinder, used with H673829

1шт.

14

102682A1

PISTON

cylinder, used with 101644A1

1шт.

15

H436908

TUBE ASSY.

cylinder, used with H673829, no longer available, order Ref. 23, 102686A1 gland and Ref. 24, 102690A1

1шт.

16

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

17

H745760

WASHER

backup, cylinder tube O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

18

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

19

102689A1

HEAD

cylinder, replaces H436907

1шт.

20

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, tube to gland and head

2шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

22

NSS

NOT SOLD SEPARAT

COVER slot, locking ring

2шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

23

102686A1

GLAND

cylinder end

1шт.

Use both Refs. 23 and 24 to replace either Ref. 8, gland or Ref. 15, tube on H673829 cylinder assy., Ref. 23 and 24 may be replaced singularly on 101644A1 cylinder assy.

1шт.

24

102690A1

TUBE

cylinder

1шт.

Use both Refs. 23 and 24 to replace either Ref. 8, gland or Ref. 15, tube on H673829 cylinder assy., Ref. 23 and 24 may be replaced singularly on 101644A1 cylinder assy.

1шт.

700710260

SEAL KIT

KIT cylinder repair, Includes: Ref. 5 - 7, 9 - 13, 16 - 18 and 20 - 22

1шт.
