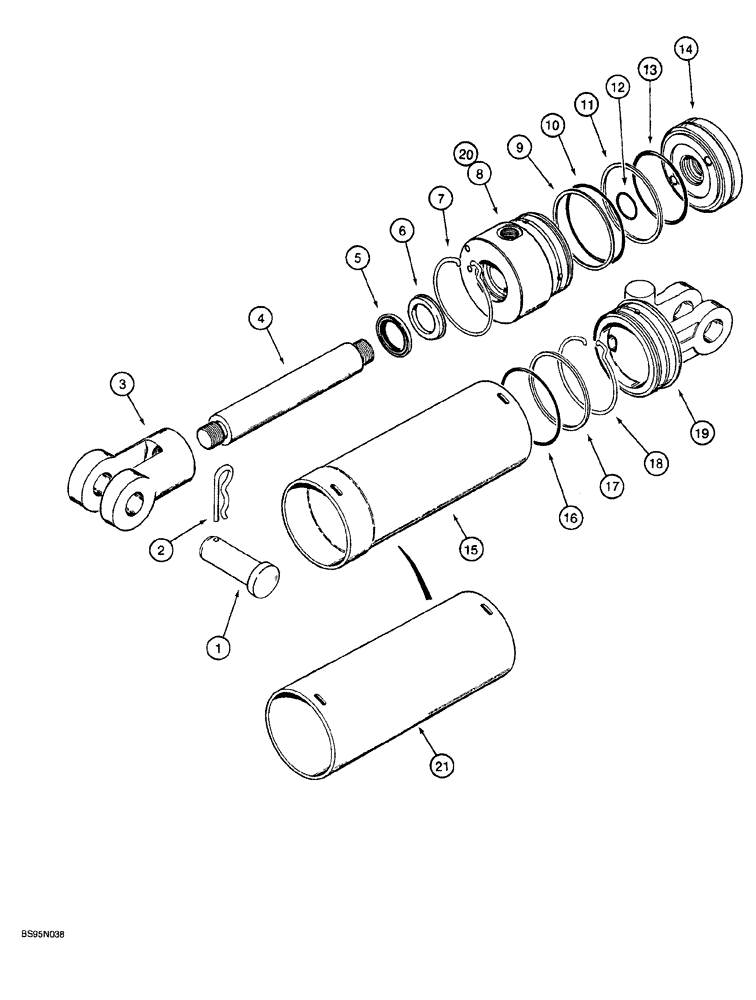

Запчасти Case 760 (08-084) - BACKFILL BLADE LIFT CYLINDER, H672345 (35) - HYDRAULIC SYSTEMS

H672345

CYLINDER

ASSEMBLY, 3 (76) ID x 8 inch (203 mm) stroke, backfill blade lift, Cessna/Eaton part No. 51303-MSFP, no longer available, order 101644A1 cylinder shown on Fig. 8-85A, Includes: Ref. 1 - 21

1шт.

1

N14001

CLEVIS PIN

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , 3-13/16" lg, Hair, Retaining Int, 7/16" x .177"

2шт.

3

N13599

PLUG

END cylinder rod

1шт.

4

102692A1

ROD

piston, replaces N13600

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

8

N13601

GLAND

cylinder, no longer available, order Ref. 20, 102686A1, and Ref. 21, 102690A1 tube

1шт.

9

H745760

WASHER

backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

10

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

11

H120188

RING

backup, piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

12

T52486

O-RING

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

14

N13602

PISTON

cylinder

1шт.

15

N13603

SLEEVE CYLINDER

no longer available, order Ref. 20, 102686A1 gland and Ref. 21, 102690A1

1шт.

16

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

17

H745760

WASHER

backup, cylinder tube O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

18

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N 700710260

1шт.

19

102689A1

HEAD

cylinder, replaces N13604

1шт.

20

102686A1

GLAND

cylinder end, used with Ref. 21, 102690A1 tube to replace Refs. 8, N13601

1шт.

21

102690A1

TUBE

cylinder, used with Ref. 20, 102686A1 gland to replace Ref. 15, N13603

1шт.

700710260

SEAL KIT

KIT cylinder repair, Includes: Ref. 5 - 7, 9 - 13 and 16 - 18, other seals not required in this application

1шт.
