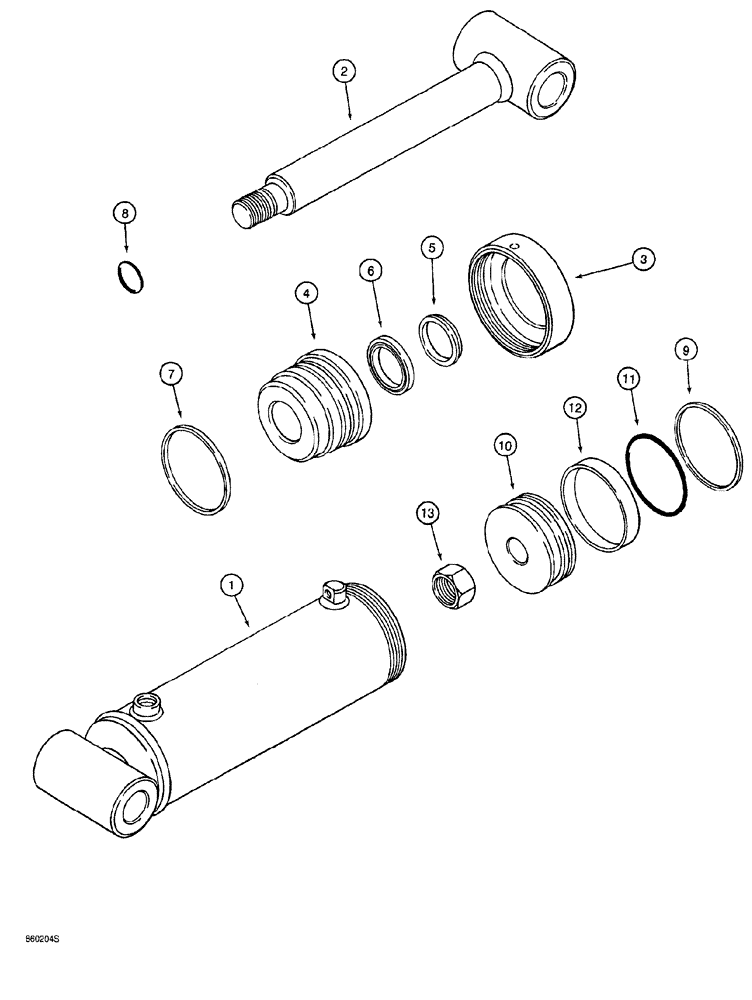

Запчасти Case 760 (08-082) - BACKFILL BLADE ANGLE CYLINDER (35) - HYDRAULIC SYSTEMS

H670935

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke, backfill blade angle, Includes: Ref. 1 - 13

2шт.

1

N13626

TUBE

cylinder

1шт.

2

N13627

ROD

piston

1шт.

3

H242545

COLLAR

gland locking

1шт.

4

H254763

GLAND

cylinder

1шт.

5

H222935

WIPER SEAL

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

6

H247809

SEAL ASSY.

U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

7

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

8

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

9

N13629

SEAL

RING

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

10

N13625

PISTON

cylinder

1шт.

11

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

12

N13630

STRIP

RING wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N13628

1шт.

13

230-46116

LOCK NUT,1"-14, GA

hex, self-locking, 1-14 inch

1шт.

N13628

SEAL KIT

cylinder repair kit, Includes: Ref. 5 - 9, 11 and 12

1шт.
