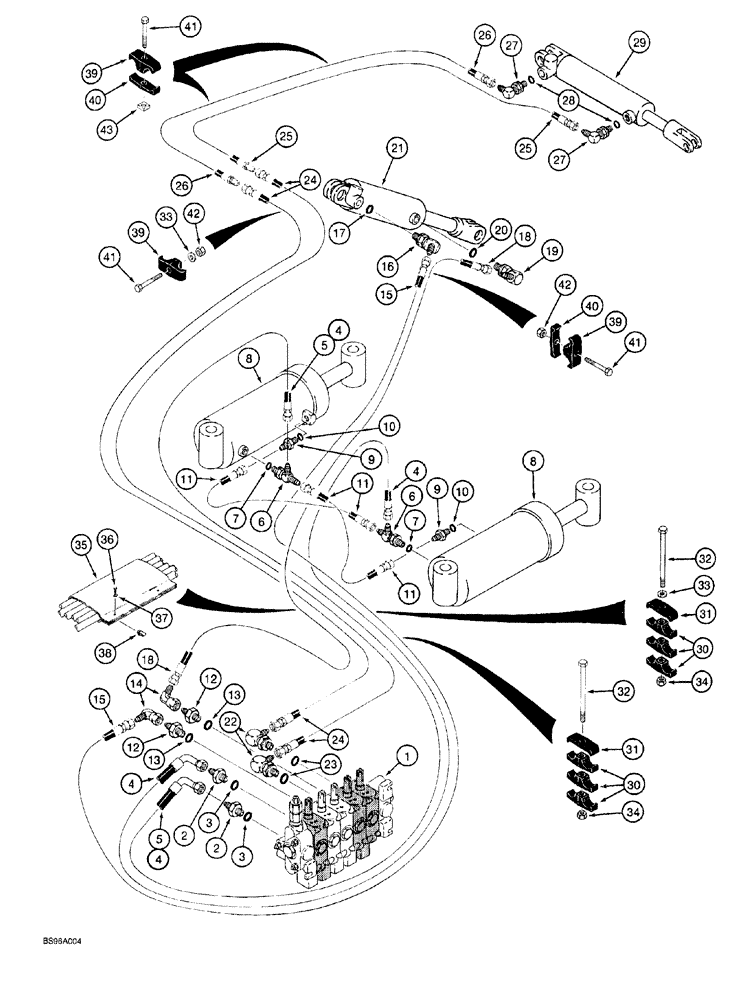

Запчасти Case 760 (08-080) - BACKFILL BLADE HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H433714

HOSE

108 inch (2750 mm) long, valve to right-hand backfill angle cylinder, replaces Ref. 5 hose to left-hand backfill angle cylinder on some models

1-2шт.

5

H433715

HOSE

120 inch (3050 mm) long, valve to left-hand backfill angle cylinder, if used

1шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 7

2шт.

8

H670935

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke, backfill blade angle, parts list Fig. 8-82

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

2шт.

11

S77121

HOSE

20 inch (508 mm) long, angle cylinder to angle cylinder

2шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

15

H350926

HOSE,0.25" ID x 110.00", SAE 100R1A

Valve to Lift Cylinder, Closed End

1шт.

16

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

Valve to Lift Cylinder, Rod End

1шт.

19

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY, backfill blade lift, see Fig. 8-84 or 8-85A for correct assembly and components

1шт.

22

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

105 inch (2667 mm) long, valve to tilt cylinder hoses, replaces H433716, 104 inch

2шт.

25

H256503

HOSE ASSY.

56 inch (1422 mm) long, valve hose to backfill blade tilt cylinder, rod end

1шт.

26

H171017

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm, SAE 100R1

Valve Hose to Backfill Blade Tilt Cylinder, Closed End

1шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 28

2шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY, backfill blade tilt, see Fig. 8-86 or 8-87A for correct assembly and components

1шт.

30

D120679

CLAMP,Tube, 1/2"

hoses

6шт.

31

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, hoses

2шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

34

230-4216

LOCK NUT,3/8"-16, GA

2шт.

35

H374678

FLAP

GUARD rubber, hoses

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

38

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

39

D120679

CLAMP,Tube, 1/2"

hoses

4шт.

40

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, hoses

3шт.

41

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

42

230-4216

LOCK NUT,3/8"-16, GA

2шт.

43

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
