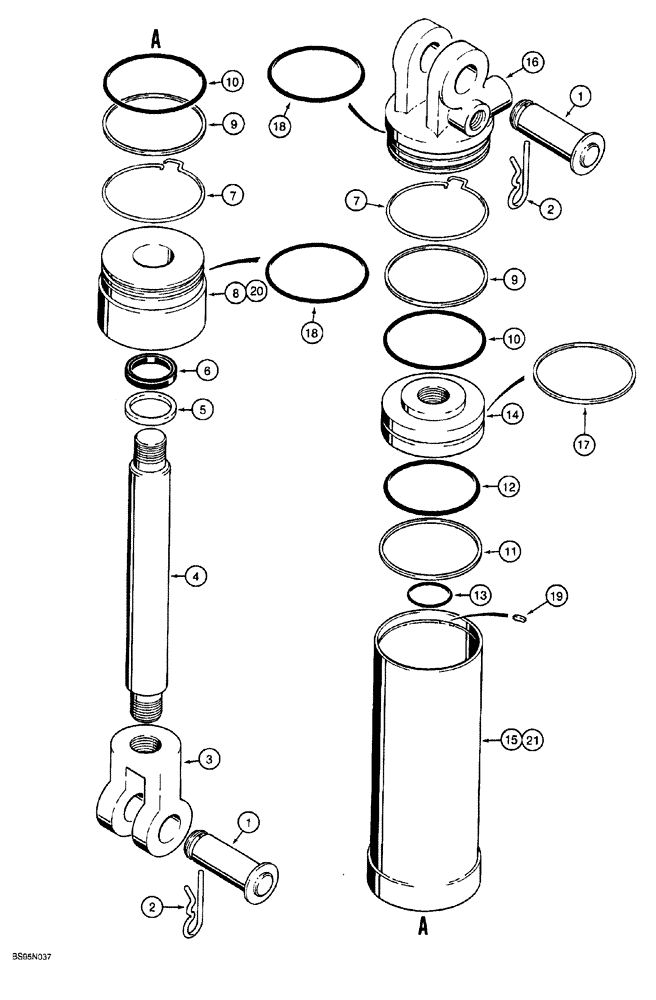

Запчасти Case 760 (08-079A) - REEL CARRIER LIFT CYLINDERS, H673832 AND 101647A1 (35) - HYDRAULIC SYSTEMS

H673832

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke, reel carrier lift, Cessna/Eaton part No. 56403-PAD, if used, Includes: Ref. 1 - 21

1шт.

101647A1

CYLINDER

ASSEMBLY, 4 (102) ID x 8 inch (203 mm) stroke, reel carrier lift, Eaton Part No. 580-0090-001, if used, Includes: Ref. 1 - 21

1шт.

1

N14001

CLEVIS PIN

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining

2шт.

3

102919A1

STEM

END piston rod, replaces H436895

1шт.

4

102918A1

STEM

ROD piston, replaces H436894

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

2шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

8

H436896

BEARING

GLAND cylinder, used on H673832 cylinder, no longer available, order Ref. 20, 102920A1 gland and Ref. 21, 102917A1 tube

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, gland and cylinder head O-ring

2шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING gland and cylinder head

2шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston, inner

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

14

102916A1

PISTON

cylinder, replaces H436892

1шт.

15

H436893

TUBE ASSY.

cylinder, used on H67383, no longer available, order Ref. 20, 102920A1 gland and Ref. 21, 102917A1

1шт.

16

102915A1

HEAD

cylinder, replaces H436891

1шт.

17

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, tube to gland and head

2шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

19

NSS

NOT SOLD SEPARAT

COVER slot, locking ring

2шт.

Part of Cylinder Seal Repair Kit, P/N H673840

1шт.

20

102920A1

BEARING

GLAND cylinder

1шт.

Use both Refs. 20 and 21 to replace either Ref. 8, gland or Ref. 15, tube on H673832 cylinder assy. Ref. 20 and 21 may be replaced singularly on 101647A1 cylinder assy.

1шт.

21

102917A1

TUBE

cylinder

1шт.

Use both Refs. 20 and 21 to replace either Ref. 8, gland or Ref. 15, tube on H673832 cylinder assy. Ref. 20 and 21 may be replaced singularly on 101647A1 cylinder assy.

1шт.

H673840

GASKET KIT

cylinder seal repair, Includes: Ref. 5 - 7, 9 - 13 and 17 - 21

1шт.
