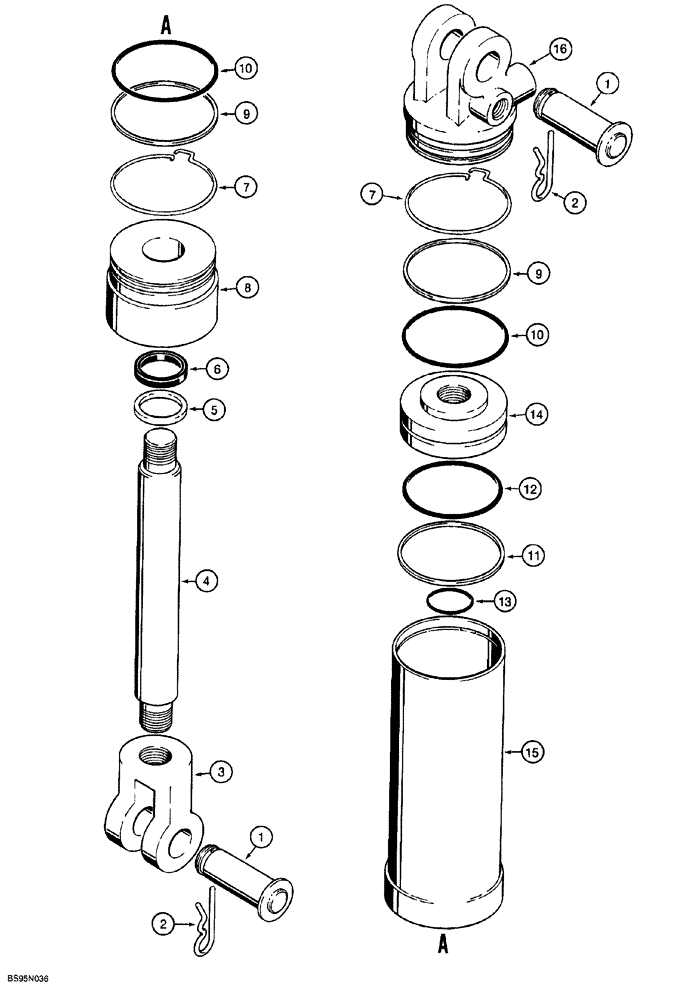

Запчасти Case 760 (08-078) - REEL CARRIER LIFT CYLINDER, H672950 (35) - HYDRAULIC SYSTEMS

H672950

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke, reel carrier lift, Cessna/Eaton part No. 51403-PSFP, no longer available, order H673832 cylinder shown on Fig. 8-79A, Includes: Ref. 1 - 18

1шт.

1

N14001

CLEVIS PIN

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

3-13/16" lg, Hair, Retaining

2шт.

3

N14828

STEM

end, cylinder rod

1шт.

4

N14829

PISTON ROD/GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

2шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

8

N14830

GLAND

cylinder, no longer available, order Ref. 17, 102920A1 gland and Ref. 18, 102917A1 tube

1шт.

9

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

backup, gland and cylinder head O-ring

2шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

10

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

12

T52486

O-RING

piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston, inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N14834

1шт.

14

N14831

PISTON

cylinder

1шт.

15

N14832

TUBE ASSY.

cylinder, no longer available, order Ref. 17, 102920A1 gland and Ref. 18, 102917A1

1шт.

16

N14833

JACK HEAD

cylinder

1шт.

17

102920A1

BEARING

GLAND cylinder, not shown, use only with Ref. 18, 102917A1 tube to replace Ref. 8, N14830

1шт.

18

102917A1

TUBE

cylinder, not shown, use only with Ref. 17, 102920A1 gland to replace Ref. 14, N14832

1шт.

N14834

SEAL KIT

cylinder seal repair, Includes: Ref. 5 - 7 and 9 - 13

1шт.
