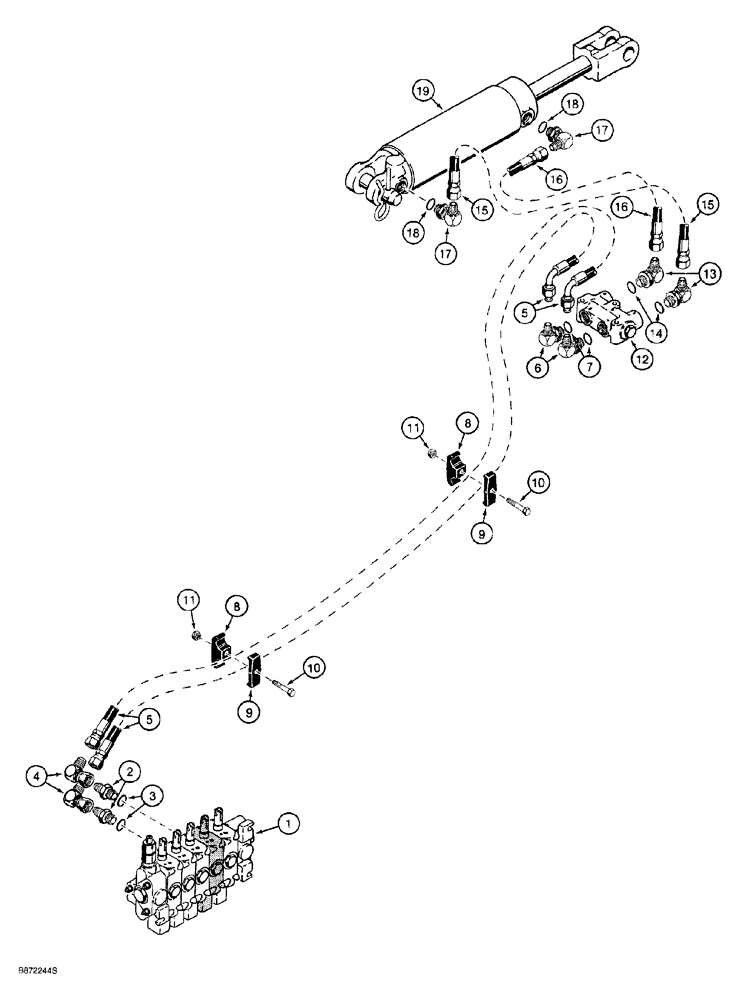

Запчасти Case 760 (08-076) - REEL CARRIER LIFT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, 5 spool, parts list Fig. 8-32 through 8-39A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

5

H433714

HOSE

108 inch (2750 mm) long, control valve to lockout valve

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

D120679

CLAMP,Tube, 1/2"

hoses

2шт.

9

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, hoses

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

232-4116

NUT,3/8"-16, GC

2шт.

12

H672547

VALVE

ASSEMBLY, lockout, parts list Fig. 8-114, mounting Fig. 9-136

1шт.

13

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

H171629

HYDRAULIC HOSE,304.80 mm, SAE 100R1

Lockout Valve to Reel Carrier Lift Cylinder, Closed End

1шт.

16

D81836

HOSE

16 inch (406 mm) long, lockout valve to reel carrier lift cylinder, rod end

1шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY, 4 inch ID x 8 inch stroke, reel carrier lift, see Fig. 8-78 or 8-79A for correct assy. and components, mounting Fig. 9-136

1шт.
