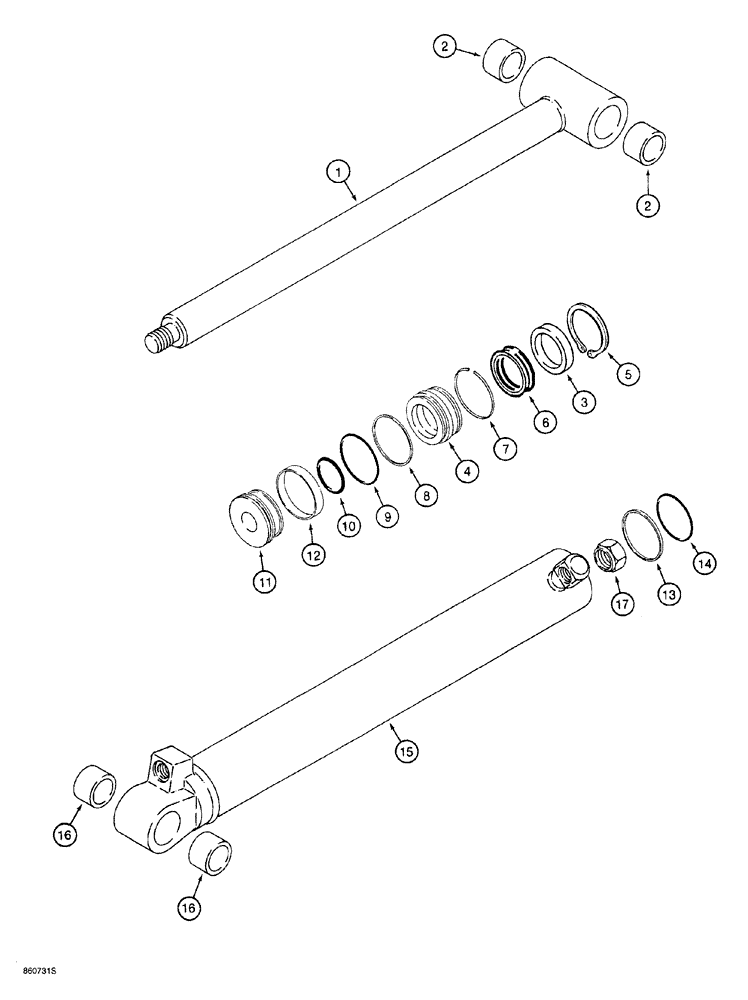

Запчасти Case 760 (08-074) - BACKHOE BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

H672570

CYLINDER

ASSEMBLY, 3 (76) ID x 25-3/4 inch (654 mm) stroke, Includes: Ref. 1 - 17

1шт.

N13930

JACK PISTON

ROD ASSEMBLY, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

2

N13921

BUSHING

piston rod

2шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

4

N13928

GLAND

cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

7

H52761

RING

retaining, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

8

H745760

WASHER

backup

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

9

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

Inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

11

N13927

PISTON

cylinder

1шт.

12

H252833

RING

wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

13

H120188

RING

backup, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

14

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

Outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13931

1шт.

N13929

SLEEVE CYLINDER

TUBE ASSEMBLY, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

16

N13921

BUSHING

piston rod

2шт.

17

232-24018

LOCK NUT,1 1/8"-12, GB

1шт.

N13931

SEAL KIT

KIT cylinder repair, Includes: Ref. 3, 5 - 10 and 12 - 14

1шт.
