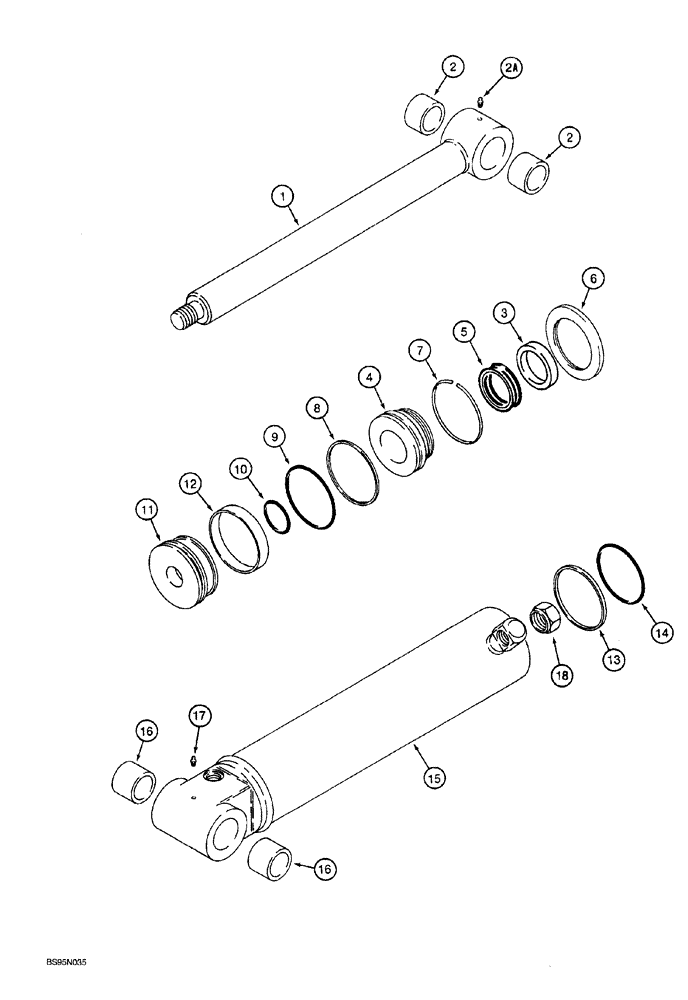

Запчасти Case 760 (08-073A) - BACKHOE DIPPER CYLINDER, 138234A1 (35) - HYDRAULIC SYSTEMS

138234A1

CYLINDER

ASSEMBLY, 4 (102) ID x 17-3/8 inch (441 mm) stroke, Eaton part No. 41400-SAS, Includes: Ref. 1 - 18

1шт.

142757A1

ROD

ASSEMBLY, piston, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

2

178307A1

BUSHING

piston rod

2шт.

2a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

4

142754A1

GLAND

cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

6

T52488

SPECIAL NUT

special, retaining, gland

1шт.

7

A41171

RING, LOCKING

RING, LOCK gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

8

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

backup

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

Inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

11

N13922

PISTON

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13926

1шт.

142755A1

TUBE

ASSEMBLY, cylinder, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

16

N13921

BUSHING

piston rod

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18

232-24020

LOCK NUT,1 1/4"-12, GB

1шт.

N13926

SEAL KIT

KIT cylinder repair, Includes: Ref. 3, 5, 7 - 10 and 12 - 14

1шт.
