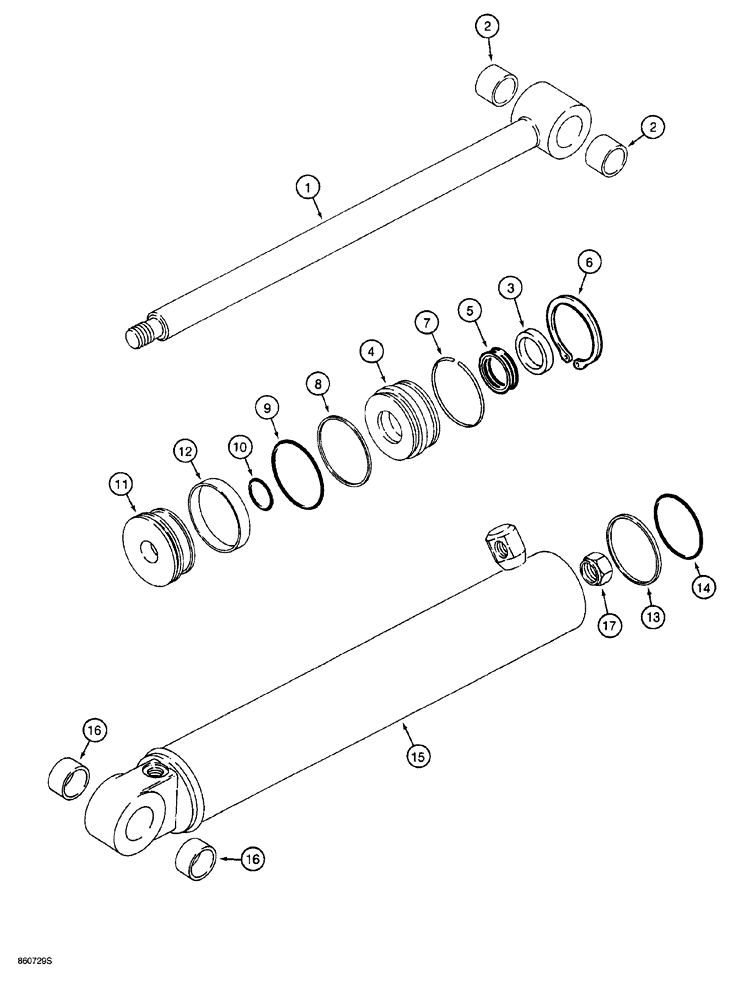

Запчасти Case 760 (08-070) - BACKHOE BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

H672568

CYLINDER

ASSEMBLY, 4 (102) ID x 24-1/2 inch (622mm) stroke, Includes: Ref. 1 - 17

1шт.

N13918

PISTON ROD

ASSEMBLY, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

2

N13921

BUSHING

piston rod

2шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

4

N13916

GLAND

cylinder

1шт.

5

H221440

SEAL

piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

6

NSS

NOT SOLD SEPARAT

RING retaining, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

7

A41171

RING, LOCKING

RING, LOCK gland

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

8

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

backup

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

10

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

11

N13915

PISTON

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

13

NSS

NOT SOLD SEPARAT

RING slipper, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N N13919

1шт.

N13917

SLEEVE CYLINDER

TUBE ASSEMBLY, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

16

N13920

CYLINDER BLOCK

BUSHING tube

2шт.

17

232-24020

LOCK NUT,1 1/4"-12, GB

1шт.

N13919

SEAL KIT

KIT cylinder seal repair, Includes: Ref. 3, 5 - 10, and 12 - 14 with an O-ring

1шт.
