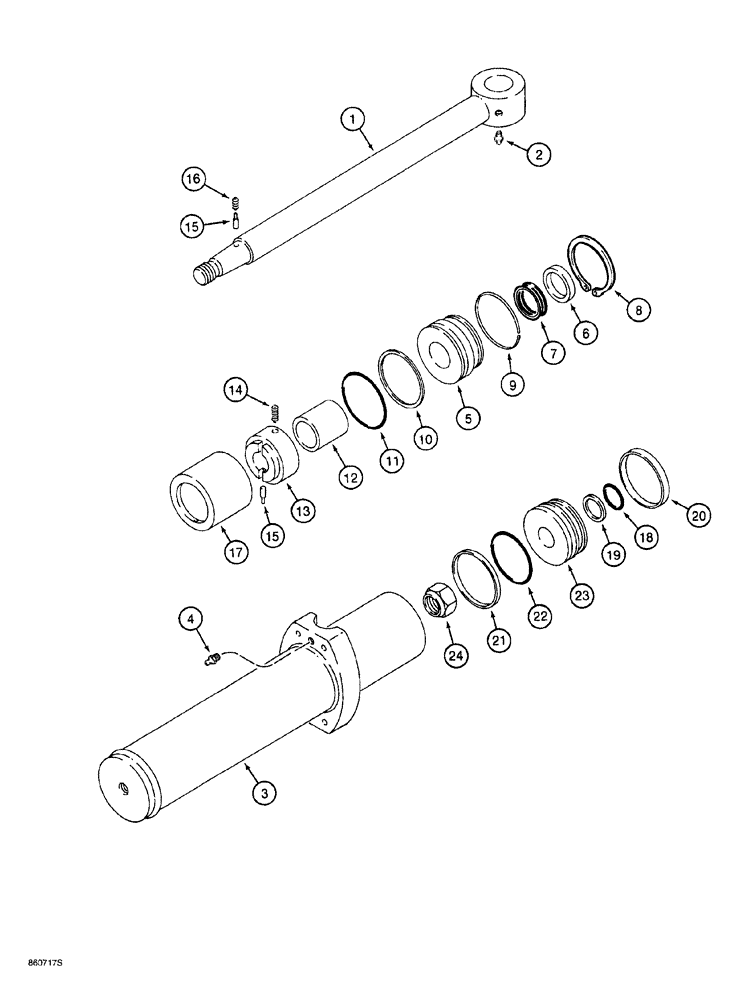

Запчасти Case 760 (08-068) - BACKHOE SWING CYLINDER (35) - HYDRAULIC SYSTEMS

H672571

CYLINDER ASSY.

3-1/4 (83) ID x 13-7/16 inch (341 mm) stroke, Includes: Ref. 1 - 24

2шт.

N13909

ROD

ASSEMBLY, piston, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, , Straight 3/16" x .55" lg, Drive

2шт.

N13908

SLEEVE CYLINDER

TUBE ASSEMBLY, cylinder, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Nipple, Lube, 1/8"-27 x .66 lg

2шт.

5

N13907

GLAND

cylinder

1шт.

6

A27564

OIL SEAL

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

7

H220558

SEAL

rod

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

8

103-11312

SNAP RING,#312, Ext

gland #312, Ext

1шт.

9

A44708

RING, LOCKING

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland, O

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

12

N13913

SPACER

gland

1шт.

13

N13911

RETAINER

sleeve

1шт.

14

A47976

SPRING

sleeve retainer

1шт.

15

N13912

PIN

locking

2шт.

16

N13905

SPRING

locking pin

1шт.

17

N13910

SLEEVE

cylinder, dampening

1шт.

18

238-5217

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

19

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring, inner

1шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

20

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL piston, outer

2шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING piston, outer

2шт.

Part of Cylinder Seal Repair Kit, P/N N13914

1шт.

23

N13906

PISTON

cylinder

1шт.

24

232-24018

LOCK NUT,1 1/8"-12, GB

NUT, LOCK, 1 1/8"-12, GB

1шт.

N13914

SEAL KIT

cylinder seal repair, Includes: Ref. 6, 7, 9 - 11, 18, 19, 21 and 22

1шт.
