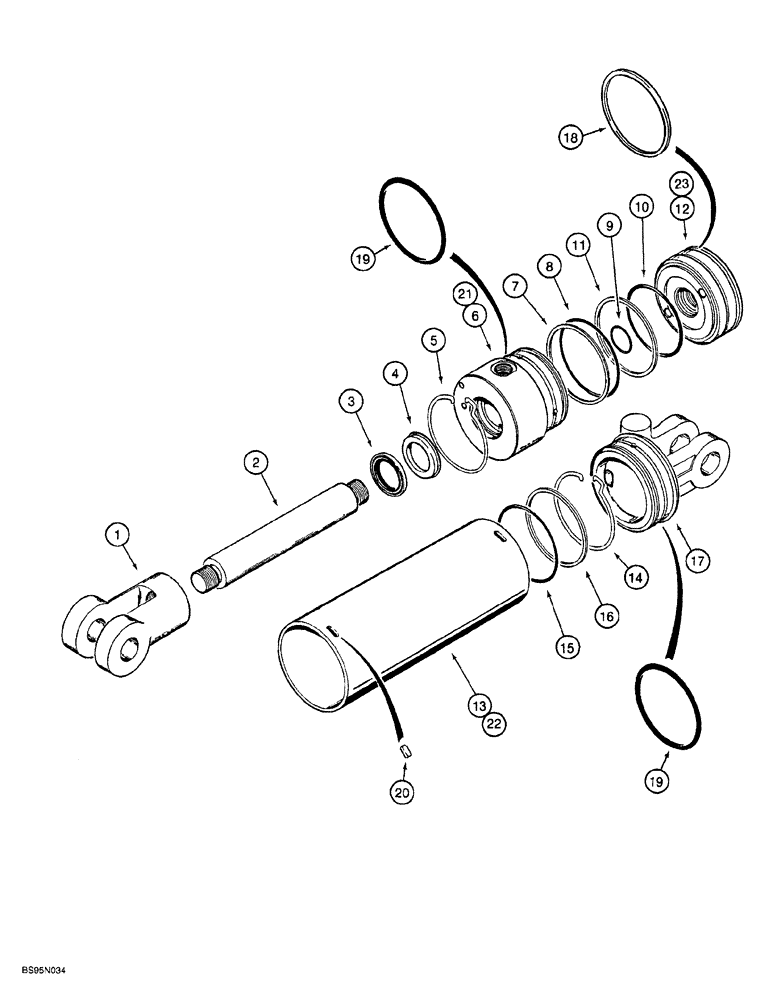

Запчасти Case 760 (08-067A) - BACKHOE STABILIZER CYLINDERS, H673831 AND 101646A1 (35) - HYDRAULIC SYSTEMS

H673831

CYLINDER

ASSEMBLY, 3-3/4 (95) ID x 16 inch (406 mm) stroke, Cessna/Eaton part No. 56363-PAA, no longer available, order 101646A1, Includes: Ref. 1 - 23

2шт.

101646A1

CYLINDER

ASSEMBLY, 3-3/4 (95) ID x 16 inch (406 mm) stroke, Eaton Part No. 580-0076-001, Includes: Ref. 1 - 23

1шт.

1

102913A1

END

cylinder rod, replaces H436905

1шт.

2

N13937

PISTON ROD

piston

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

5

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

6

H436906

BEARING

GLAND cylinder, used on H673831, no longer available, order Ref. 21, 102914A1 gland and Ref. 22, 102912A1 tube

1шт.

7

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING piston, inner

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston, slip-fit

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

12

H436903

PISTON

cylinder, no longer available, order Ref. 23, 102911A1

1шт.

13

H436904

TUBE ASSY.

used on H673831 cylinder, no longer available, order Ref. 21, 102914A1 gland and Ref. 22, 102912A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING cylinder head

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

16

NSS

NOT SOLD SEPARAT

RING backup, cylinder head O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

17

N13935

HEAD (CYLINDER)

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

18

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING tube to gland and head

2шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

20

NSS

NOT SOLD SEPARAT

COVER slot, locking ring

2шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

21

102914A1

BEARING

GLAND cylinder

1шт.

22

102912A1

TUBE

cylinder

1шт.

Use both Refs. 22 and 23 to replace either Ref. 6, gland or Ref. 13, tube on H673831 cylinder assy. Ref. 22 and 23 may be replaced singularly on 101646A1 cylinder assy.

1шт.

23

102911A1

PISTON

cylinder

1шт.

Use both Refs. 22 and 23 to replace either Ref. 6, gland or Ref. 13, tube on H673831 cylinder assy. Ref. 22 and 23 may be replaced singularly on 101646A1 cylinder assy.

1шт.

H673839

SEAL

KIT cylinder repair, Includes: Ref. 3 - 5, 7 - 11, 14 - 17, 19 and 20

1шт.
