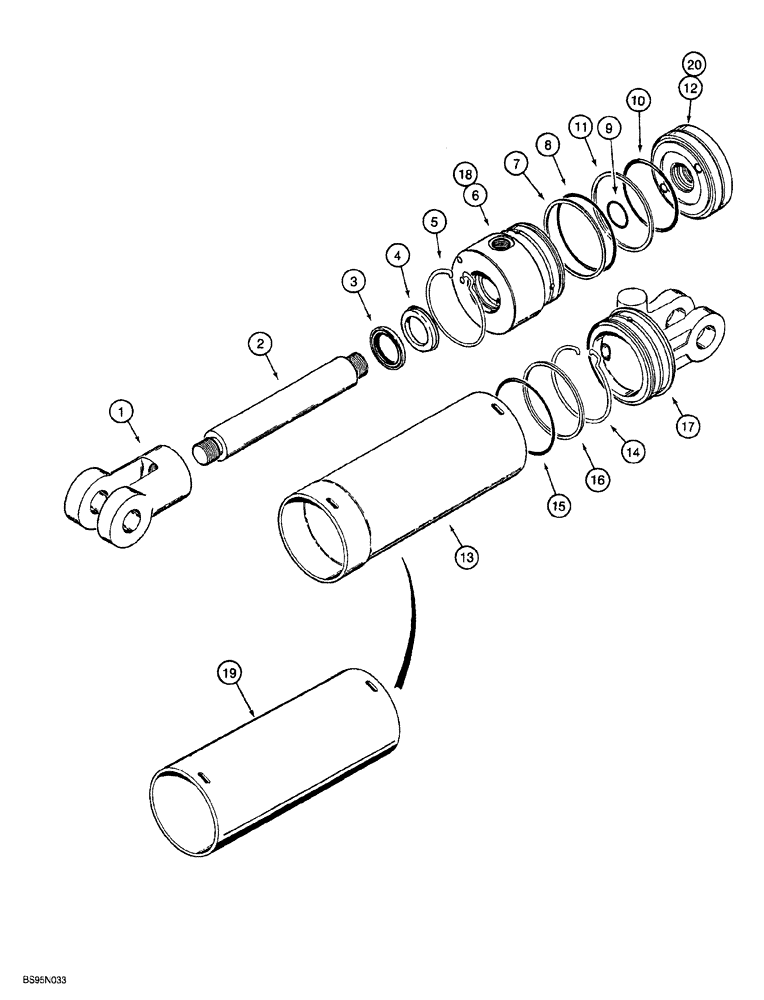

Запчасти Case 760 (08-066) - BACKHOE STABILIZER CYLINDER, H672630 (35) - HYDRAULIC SYSTEMS

H672630

CYLINDER

ASSEMBLY, 3-3/4 (95) ID x 16 inch (406 mm) stroke, no longer available, order 101646A1 cylinder shown on Fig. 8-67A, Includes: Ref. 1 - 20

2шт.

1

N13934

STEM

END cylinder rod

1шт.

2

N13937

PISTON ROD

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

5

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

6

N13933

GLAND

cylinder

1шт.

7

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

8

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING piston, inner

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston, slip-fit

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

12

N13932

PISTON

cylinder, no longer available, order Ref. 20, 102911A1

1шт.

13

H436904

TUBE ASSY.

cylinder, no longer available, order Ref. 18, 102914A1 gland and Ref. 19, 102912A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING locking

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

15

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup, cylinder head, O-ring

1шт.

Part of Cylinder Seal Repair Kit, P/N H673839

1шт.

17

N13935

HEAD (CYLINDER)

1шт.

18

102914A1

BEARING

GLAND cylinder, use only with Ref. 19, 102912A1 tube to replace Ref. 13, H436904

1шт.

19

102912A1

TUBE

cylinder, use only with Ref. 18, 102914A1 gland to replace Ref. 13, H436904

1шт.

20

102911A1

PISTON

cylinder

1шт.

H673839

SEAL

KIT cylinder, Includes: Ref. 3 - 5, 7 - 11 and 14 - 16, repair and additional seals not used in this application

1шт.
