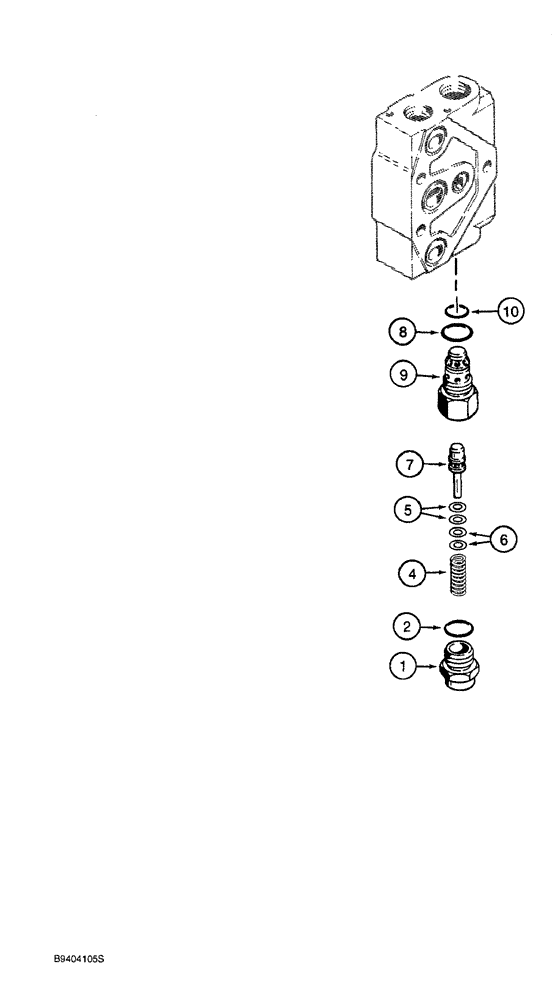

Запчасти Case 760 (08-065K) - BACKHOE CONTROL VALVE ASSY - H672270, CIRCUIT RELIEF VALVE ASSEMBLIES MANUFACT. BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-65A - 8-65K, Includes: Ref. 1 - 10

1шт.

N14045

VALVE

ASSEMBLY, circuit relief, 3200 psi, backhoe boom section "B" port and backhoe dipper and swing sections "A" and " B" ports, Includes: Ref. 1 - 10

5шт.

N14058

VALVE

ASSEMBLY, circuit relief, 1600 psi, backhoe boom section "A" port, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

2

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

Cap

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

5

H398644

BLOCK

SHIM, 0.003 inch (0.08 mm) thick

1шт.

6

H398651

BLOCK

SHIM, 0.020 inch (0.51 mm) thick

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

8

H398685

O-RING

relief valve, large

1шт.

9

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
