(08-065I) - BACKHOE CONTROL VALVE ASSY - H672270, DUAL CONTROL & STABILIZER LEVERS MANUFACT. BY COM. INTERTECH

Запчасти Case 760 (08-065I) - BACKHOE CONTROL VALVE ASSY - H672270, DUAL CONTROL & STABILIZER LEVERS MANUFACT. BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS

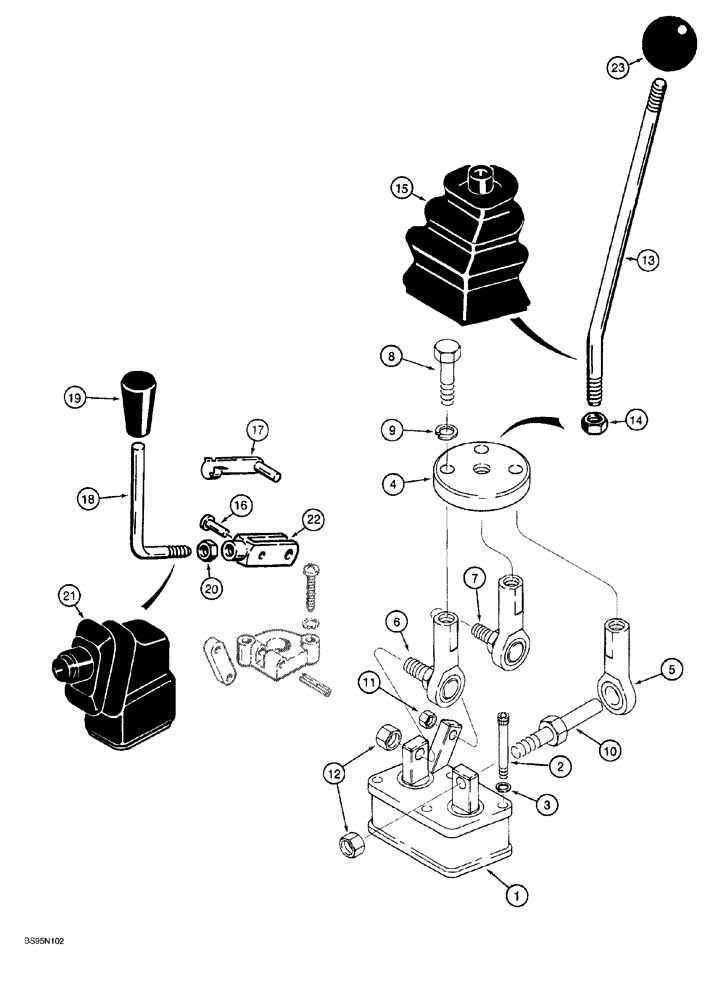

Схема запчастей Case 760 - (08-065I) - BACKHOE CONTROL VALVE ASSY - H672270, DUAL CONTROL & STABILIZER LEVERS MANUFACT. BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS
21
5
3
4
16
10
19
23
22
11
12
8
6
15
9
7
2
17
1
13
20
14
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-65A - 8-65K, Includes: Ref. 1 - 22

1шт.

H674022

BRACKET

ASSEMBLY, mounting, dual control lever, Includes: Ref. 1 - 12

2шт.

1

H437230

BRACKET

mounting, dual control lever

1шт.

2

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

4шт.

3

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

H674595

ADAPTER

PLATE ASSEMBLY, dual control lever, Includes: Ref. 4 - 9

1шт.

4

H437228

DISC

PLATE dual control lever

1шт.

5

H437227

END

rod, Serial Range: adapter-guide

1шт.

7

H437225

END

rod, adapter to bracket, with pivot stud, 6 - 1.0 mm, use with Ref.11, H438213 nut

1шт.

6

H437226

END

rod, adapter to spool eye, with pivot stud, 8 - 125 mm, use with one of Ref. 12, H438214 nut

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

9

893-11008

LOCK WASHER,Ext Tooth, M8

3шт.

10

H437229

GUIDE

STUD pivot, 8 - 1.25 mm, use with one of Ref. 12, H438214 nut

1шт.

11

H438213

NUT

hex, special, 6 - 1.0 mm, use with Ref. 7, H437225 rod end

1шт.

12

H438214

NUT

hex, special, 8 - 1.25 mm, use one with Ref. 6, H437226 rod end, and one with Ref. 10, H437229 pivot stud

1шт.

H674023

HANDLE

LEVER ASSEMBLY, dual control, Includes: Ref. 13 - 15

2шт.

13

H438215

LEVER

dual control

1шт.

14

425-117

NUT,7/16"-20, G5

1шт.

15

H438216

BOOT

lever

1шт.

H674696

HANDLE

LEVER ASSEMBLY, 65 degree, stabilizer, Includes: Ref. 16 - 22

2шт.

16

H438220

PIN

clevis, special

1шт.

17

N14124

CIRCLIP

clevis

1шт.

H674697

LEVER

ASSEMBLY, control, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER control

1шт.

19

H398867

GRIP

KNOB control lever

1шт.

20

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

21

N14125

BOOT

control lever

1шт.

22

H438219

CLEVIS

control lever

1шт.

23

CAS31375

KNOB

dual control lever, order separately, not included with H672270 valve assembly

2шт.
