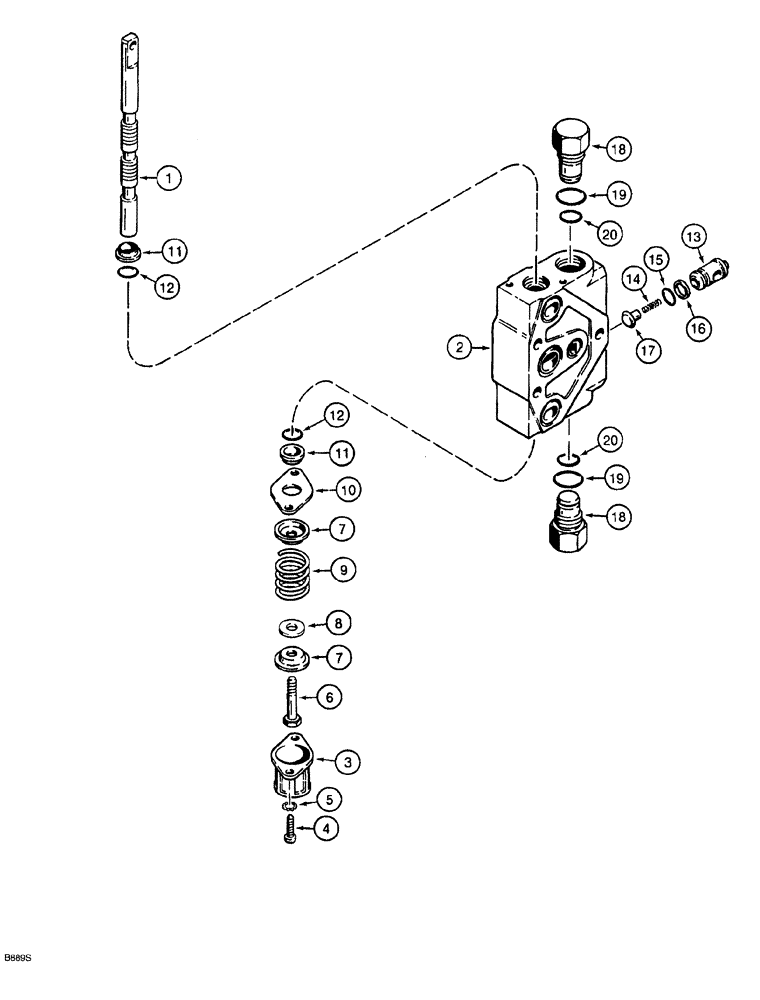

Запчасти Case 760 (08-065G) - BACKHOE CONTROL VALVE ASSY - H672270, BOOM, BUCKET, DIPPER & SWING SEC. MANUFACT. BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-65A - 8-65K, Includes: Ref. 1 - 20

1шт.

H674691

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, bucket, Includes: Ref. 1 - 20

1шт.

H674693

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, dipper or swing, includes N14045 circuit relief valve assembly, Includes: Ref. 1 - 20

2шт.

See Fig. 8-65K for circuit relief valve assemblies

1шт.

H674694

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, boom, includes N14045 and N14058 circuit relief valve assemblies, Includes: Ref. 1 - 20

1шт.

See Fig. 8-65K for circuit relief valve assemblies

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve section, Includes: Ref. 3 - 5

1шт.

3

H438212

CAP

spool

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

6

H401190

SCREW

special, spool end

1шт.

7

H401208

SEAT PLATE

spring

2шт.

8

1329639C1

SPACER

spring seat

1шт.

9

H401216

SPRING

spool

1шт.

10

N14042

SHIN

RETAINER seal

1шт.

11

N14043

WIPER SEAL

SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool

2шт.

13

H438205

VALVE

POPPET load check

1шт.

14

H438206

SPRING

load check

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Load check

1шт.

16

N14047

GASKET

RING backup, load check

1шт.

17

H438207

GUIDE

load check

1шт.

N14057

PLUNGER ASSY.

PLUG, section, if used, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

PLUG section

1шт.

19

H398685

O-RING

plug, large

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug

1шт.
