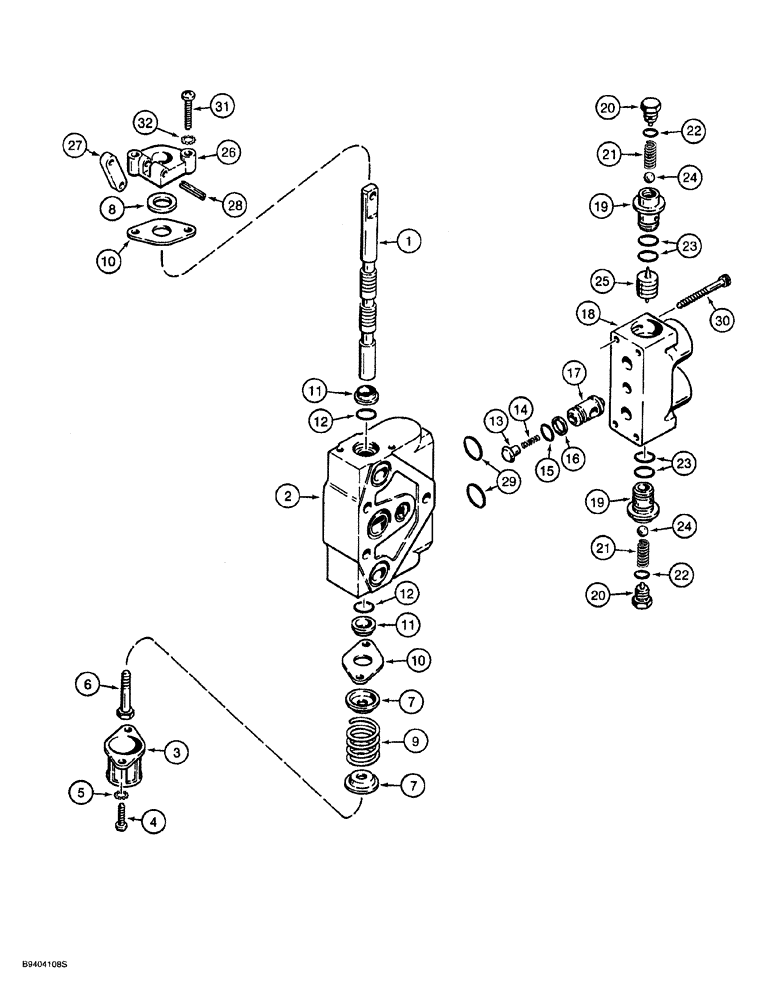

Запчасти Case 760 (08-065E) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, STABILIZER SECTION, MANUFACTURED BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-65A - 8-65K, Includes: Ref. 1 - 32

1шт.

H674692

HYD VALVE SECTION

SECTION ASSEMBLY, stabilizer, Includes: Ref. 1 - 32

2шт.

1

NSS

NOT SOLD SEPARAT

SPOOL stabilizer section

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, stabilizer section

1шт.

3

H438212

CAP

spool

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

6

H401190

SCREW

special, spool end

1шт.

7

H401208

SEAT PLATE

spring

2шт.

8

1329639C1

SPACER

bracket

1шт.

9

H401216

SPRING

spool

1шт.

10

N14042

SHIN

RETAINER seal

2шт.

11

N14043

WIPER SEAL

SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool

2шт.

13

H438207

GUIDE

load check

1шт.

14

H438206

SPRING

load check

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Load check

1шт.

16

N14047

GASKET

RING backup, load check

1шт.

17

H438205

VALVE

POPPET load check

1шт.

N14048

VALVE

ASSEMBLY, double check, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY, double check

1шт.

N14049

VALVE

CARTRIDGE ASSEMBLY, double check, Includes: Ref. 19 - 24

2шт.

19

NSS

NOT SOLD SEPARAT

BODY, double check

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG, double check valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING double check valve

1шт.

22

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16 inch wide, plug

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Double check valve body

2шт.

24

NSS

NOT SOLD SEPARAT

BALL, double check valve

1шт.

25

N14050

PILOT VALVE

SHUTTLE, double check valve

1шт.

H674596

BRACKET

ASSEMBLY, mounting, stabilizer lever, Includes: Ref. 26 - 28

1шт.

26

H438217

BRACKET

mounting, lever

1шт.

27

H438218

LINK

lever

1шт.

28

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

29

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Double check valve body, to stabilizer valve section

2шт.

30

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

4шт.

31

276-24720

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/4"

self-tapping, hex head, 1/4 NC x 1-1/4 inch

2шт.

32

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.
