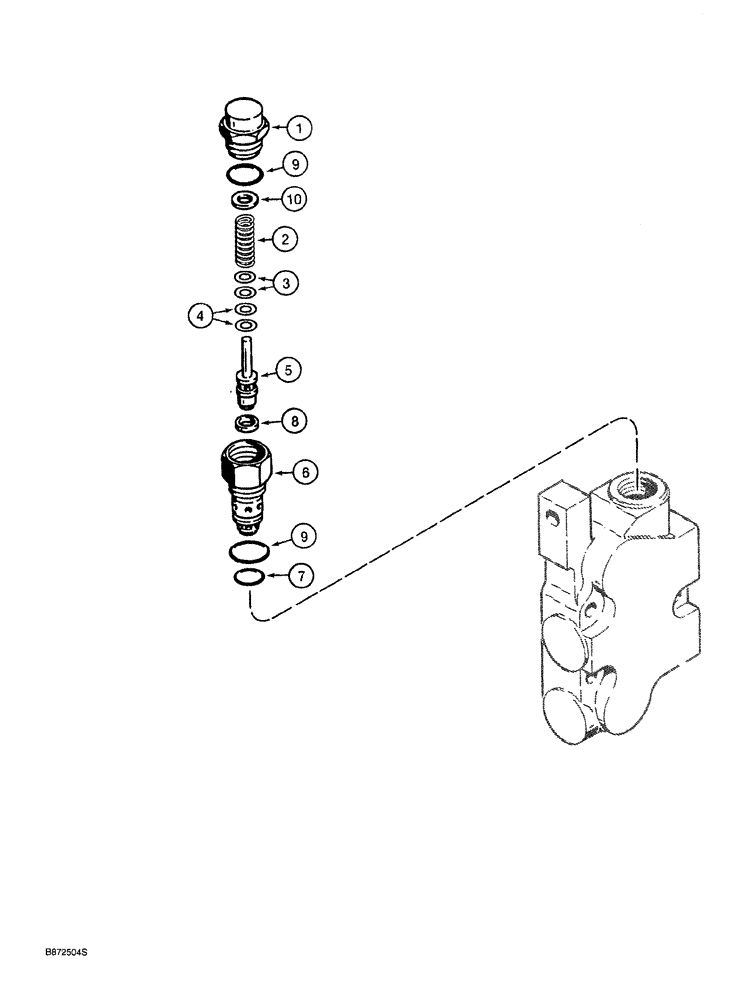

Запчасти Case 760 (08-065C) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MAIN RELIEF VALVE ASSY, MANUFACTURED BY COM. INTERTECH (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-65A - 8-65K, Includes: Ref. 1 - 10

1шт.

N14645

VALVE, PRESSURE RELI

EF ASSEMBLY, main, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

2

H437223

SPRING

relief valve

1шт.

3

H398644

BLOCK

SHIM, 0.003 inch (0.08 mm) thick

1шт.

4

H398651

BLOCK

SHIM, 0.020 inch (0.51 mm) thick

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY relief valve cartridge

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Relief valve

1шт.

8

135061A1

SEAL

square, replaces N14120

1шт.

9

H398685

O-RING

large, relief valve

2шт.

10

1329639C1

SPACER

spring

1шт.
