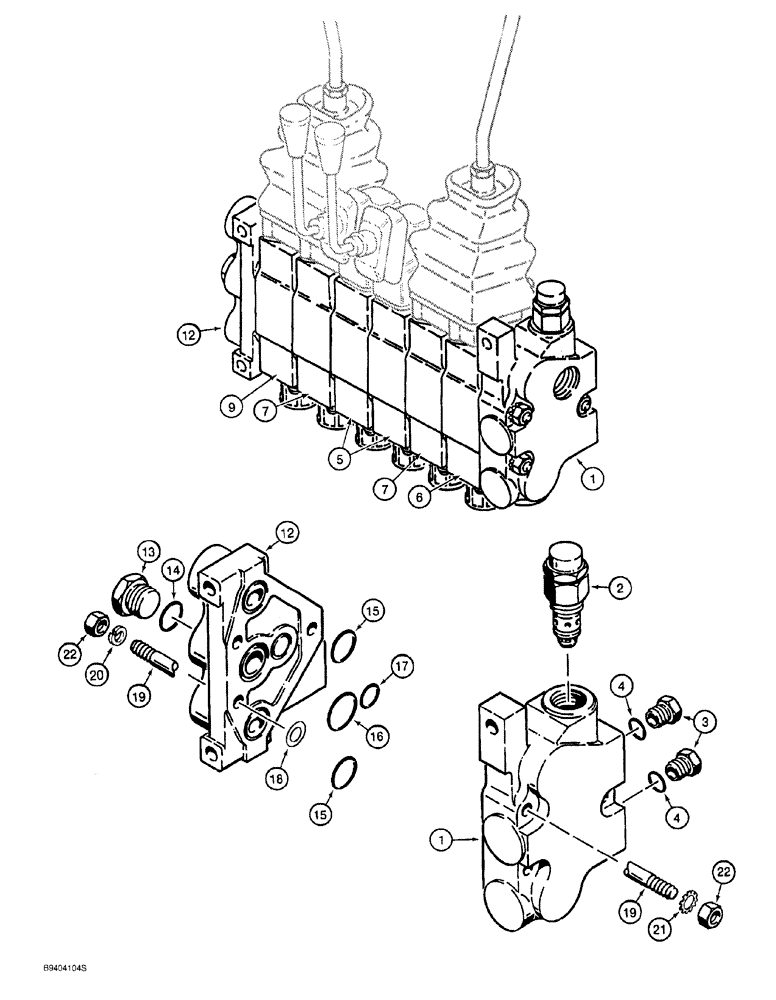

Запчасти Case 760 (08-065A) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MANUFACTURED BY COMMERCIAL INTERTECH (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-65A - 8-65K, includes levers and boots, Includes: Ref. 1 - 22

1шт.

For control valve levers and boots see Fig. 8-65I

1шт.

1

N14032

KNIFE SECTION

SECTION, KNIFE ASSEMBLY inlet, Includes: Ref. 2 - 4

1шт.

2

N14645

VALVE, PRESSURE RELI

EF ASSEMBLY, main relief, parts list Fig. 8-65C

1шт.

3

76349

PLUG,9/16" - 18 ORB

Inlet section, Incl. Ref. 4

2шт.

5

H674692

HYD VALVE SECTION

ASSEMBLY, stabilizer, parts list Fig. 8-65E, Includes: Ref. 8

2шт.

6

H674691

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, bucket, parts list Fig. 8-65G, Includes: Ref. 8

1шт.

7

H674693

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, dipper or swing, parts Fig. 8-65G, Includes: Ref. 8

2шт.

8

N14045

VALVE

ASSEMBLY, circuit relief, 3200 psi, backhoe dipper and swing sections "A"and "B" ports, parts list Fig. 8-65K, not shown

4шт.

9

H674694

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, boom, parts list Fig. 8-65G, Includes: Ref. 10 and 11

1шт.

10

N14058

VALVE

ASSEMBLY, circuit relief, 1600 psi, backhoe boom section "A" port, parts list Fig. 8-65K, not shown

1шт.

11

N14045

VALVE

ASSEMBLY, circuit relief, 3200 psi, backhoe boom section "B" port, parts list Fig. 8-65K, not shown

1шт.

N14036

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, outlet, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

SECTION outlet

1шт.

13

86625138

PLUG,7/18" - 14

Includes Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

H438208

O-RING

body, medium

2шт.

Used in all section assemblies

1шт.

16

H438209

O-RING

body, large

1шт.

Used in all section assemblies

1шт.

17

H438210

O-RING

body, small

1шт.

Used in all section assemblies

1шт.

18

H438211

SHIM

body

1шт.

Used in all section assemblies

1шт.

N14041

SET

KIT tie rod, Includes: Ref. 19 - 22

3шт.

19

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Plug

1шт.
