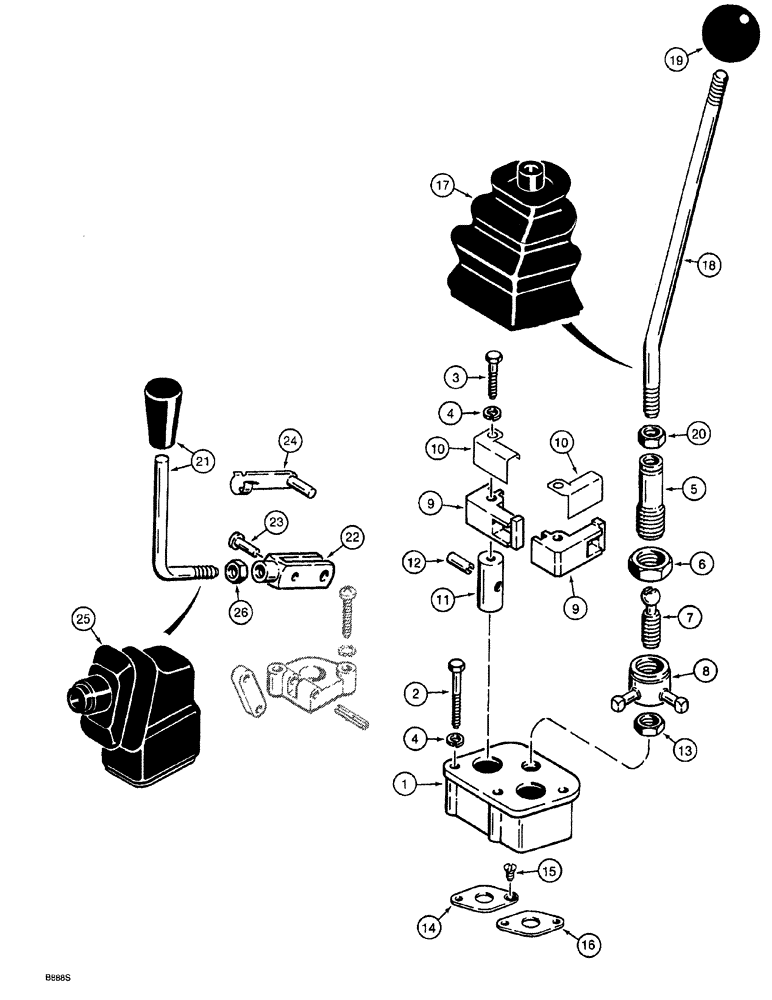

Запчасти Case 760 (08-062) - BACKHOE CONTROL VALVE ASSY. H672270 DUAL CONTROL & STABILIZER LEVERS MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-54 - 8-64, Includes: Ref. 1 - 26

1шт.

1

N14056

BRACKET

dual control

2шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

4

492-11025

LOCK WASHER,1/4"

10шт.

1329650C1

KIT

BLOCK pivot, replaces N14051, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

COLUMN control lever

1шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

BALL threaded, column

1шт.

8

NSS

NOT SOLD SEPARAT

PIVOTblock

1шт.

9

1329652C1

ADAPTER

pivot block, replaces N14053 connector

4шт.

10

N14059

COVER

connector

4шт.

11

N14054

ADAPTER

control bracket

4шт.

12

138-224

LOCK PIN,5/16" x 3/4", Slotted

4шт.

13

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

14

N14055

SEAL

PLATE

2шт.

15

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

machine, flat head slotted, 1/4 NC x 5/8 inch

2шт.

16

N14042

SHIN

RETAINER seal

2шт.

17

1329649C1

BOOT

control assembly, replaces N14052 boot

2шт.

N14039

LEVER ASSY.

dual control, no longer available, order H674697 shown on Fig.8-65I, Includes: Ref. 18 and 19

2шт.

18

H438215

LEVER

dual control

1шт.

19

H398867

GRIP

KNOB dual lever control

1шт.

20

425-147

JAM NUT,Jam, 7/16"-14, G5

hex, jam, 7/16 inch NC

2шт.

21

N14122

LEVER

control valve, includes knob

2шт.

22

N14123

CLEVIS

control lever, no longer available, order H438219 shown on Fig.8-65I

2шт.

23

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

2шт.

24

N14124

CIRCLIP

clevis

2шт.

25

N14125

BOOT

control lever

2шт.

26

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
