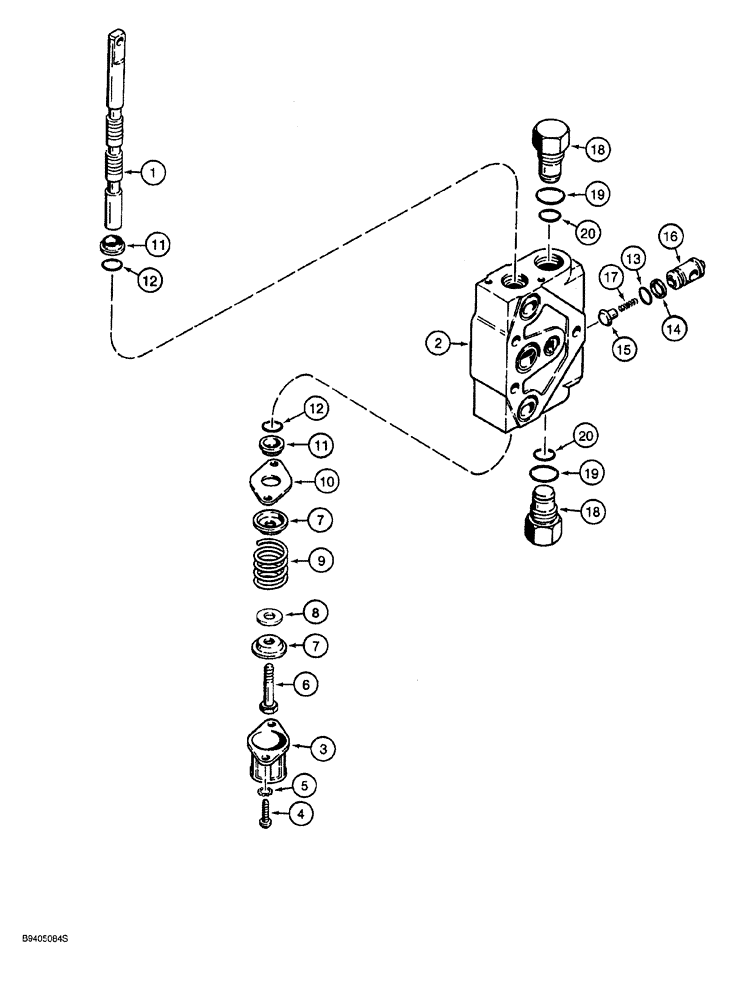

Запчасти Case 760 (08-060) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, BOOM, BUCKET, DIPPER & SWING SEC. MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-54 - 8-64, Includes: Ref. 1 - 20

1шт.

N14033

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, boom, bucket, dipper, and swing, Includes: Ref. 1 - 20

4шт.

1

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve section

1шт.

H401182

CAP

ASSEMBLY, spool end, no longer available, order H438212 cap, two (2) 440-12512 screws, and two (2) 493-41026

1шт.

3

H438212

CAP

spool, replaces H401182 assembly

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

6

H401190

SCREW

special, spool end

1шт.

7

H401208

SEAT PLATE

spring

2шт.

8

1329639C1

SPACER

spring seat

1шт.

9

H401216

SPRING

spool

1шт.

10

N14042

SHIN

RETAINER seal

1шт.

11

N14043

WIPER SEAL

SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

N14044

KIT

load check, Includes: Ref. 13 - 15

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

N14047

GASKET

RING backup, load check

1шт.

15

NSS

NOT SOLD SEPARAT

GUIDE load check

1шт.

16

H438205

VALVE

POPPET load check

1шт.

17

H438206

SPRING

load check

1шт.

N14057

PLUNGER ASSY.

PLUG, section, if used, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

PLUG section

1шт.

19

H398685

O-RING

large

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
