Запчасти Case 660 (09-29A) - DECALS - ENGLISH (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS

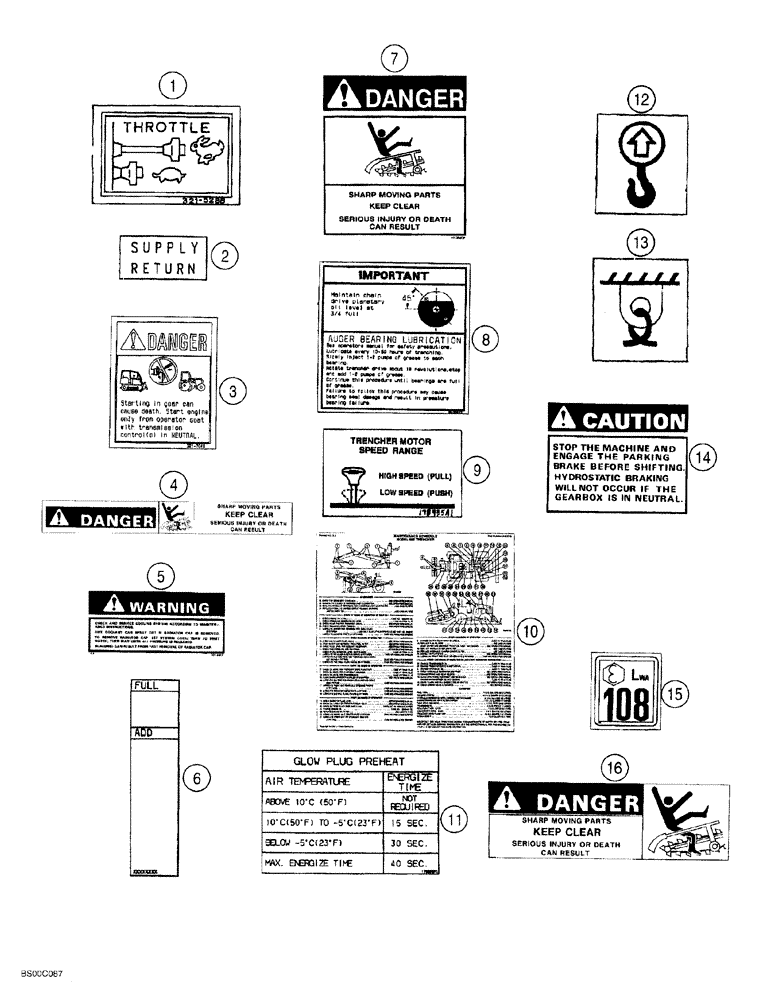

Схема запчастей Case 660 - (09-29A) - DECALS - ENGLISH (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS
2
9
1
4
11
6
10
5
12
14
7
13
3
15
16
8

Артикул

Название

Примечание

Количество

1

321-5288

DECAL

throttle

1шт.

2

H438522

DECAL

supply, return

1шт.

3

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

4

H438909

DECAL

danger, sharp moving parts, keep clear, 60 x 470 mm long

2шт.

5

321-6672

DECAL

warning, check and service cooling system

1шт.

6

109715A1

DECAL

hydraulic oil reservoir level

1шт.

7

H438908

DECAL

danger, sharp moving parts, keep clear, 110 x 110 mm long

3шт.

8

H437833

DECAL

important, maintain chain drive planetary oil level

1шт.

9

178935A1

DECAL

trencher motor speed range

1шт.

10

8-80970

DECAL

maintenance schedule

1шт.

11

179826A1

DECAL

glow plug preheat

1шт.

12

139729A1

DECAL

lift only

4шт.

13

139728A1

DECAL

tie down

4шт.

14

321-5501

DECAL

caution, stop the machine

1шт.

15

221868A1

DECAL

bystander, 112 LWA noise level

1шт.

16

H438999

DECAL

danger, sharp moving parts, keep clear

2шт.

Выбрано товаров: 16
