Запчасти Case 660 (09-27A) - DECALS - GERMAN (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS

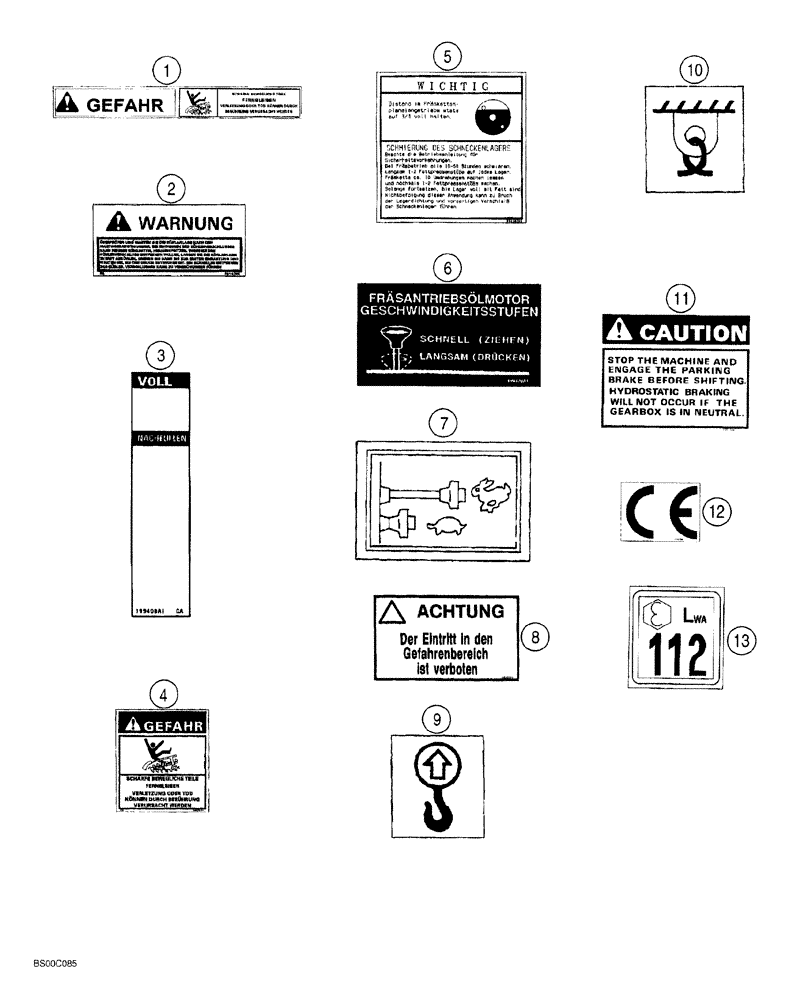

Схема запчастей Case 660 - (09-27A) - DECALS - GERMAN (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS
12
10
11
13
2
6
1
7
4
9
5
8
3

Артикул

Название

Примечание

Количество

1

220679A1

DECAL

danger, sharp moving parts, keep clear

2шт.

2

321-6795

DECAL

warning, check and service cooling system (German)

1шт.

3

199408A1

DECAL

hydraulic oil reservoir level

1шт.

4

196969A1

DECAL

danger, sharp moving parts, keep clear

3шт.

5

224102A1

DECAL

important, maintain chain drive planetary oil level

1шт.

6

199429A1

DECAL

trencher motor speed range

1шт.

7

199413A1

DECAL

throttle, fast/slow

1шт.

8

175684A1

DECAL

attention, keep clear, sharp moving parts

1шт.

9

139729A1

DECAL

lift only

4шт.

10

139728A1

DECAL

tie down

4шт.

11

321-5501

DECAL

caution, stop the machine

1шт.

12

176262A1

DECAL

CE symbol, 60 mm

1шт.

13

221868A1

DECAL

bystander, 112 LWA, noise level

1шт.

Выбрано товаров: 13
