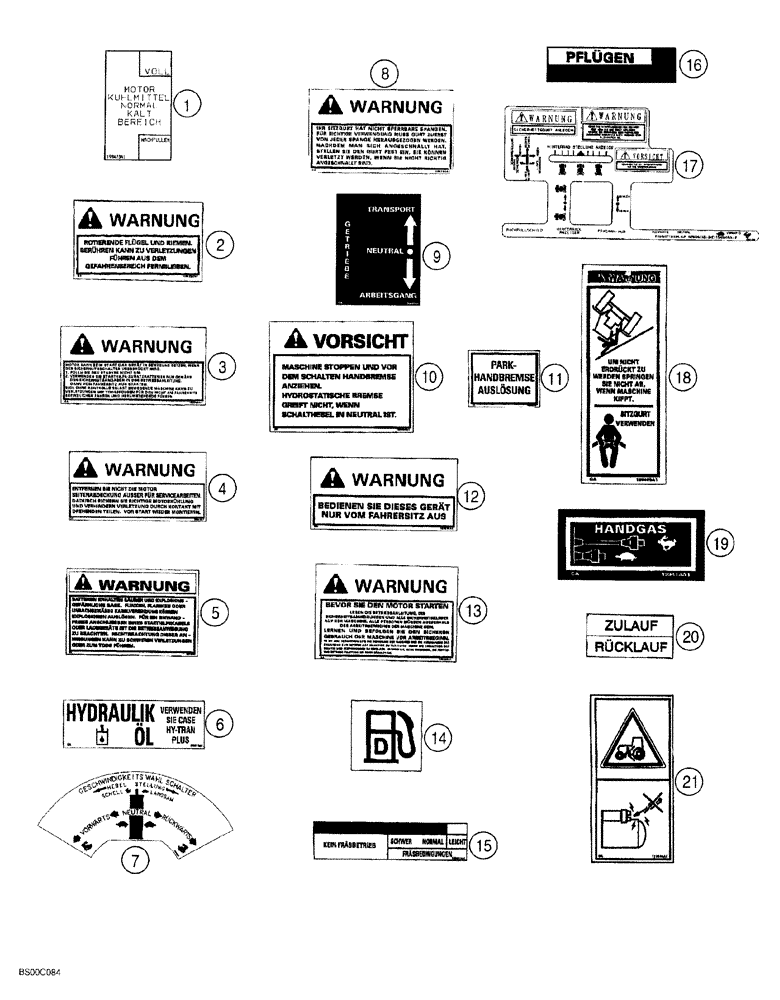

Запчасти Case 660 (09-26) - DECALS - GERMAN (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

199423A1

DECAL

coolant level

1шт.

2

199392A1

DECAL

warning, rotating fan and belts

2шт.

3

199396A1

DECAL

warning, engine can start with transmission in gear

1шт.

4

199412A1

DECAL

warning, do not remove engine side panels

2шт.

5

321-6724

DECAL

warning, batteries contain acid and explosive gas (German)

1шт.

6

199414A1

DECAL

hydraulic fluid

1шт.

7

199415A1

DECAL

ground drive controls

1шт.

8

199394A1

DECAL

warning, your seat belt has non-locking retractors

1шт.

9

199407A1

DECAL

shift pattern

1шт.

10

199404A1

DECAL

caution, stop the machine

1шт.

11

199405A1

DECAL

parking brake release

1шт.

12

199395A1

DECAL

warning, operate this unit from operator's seat only

3шт.

13

199400A1

DECAL

warning, before starting engine

1шт.

14

139879A1

DECAL

diesel fuel

1шт.

15

199411A1

DECAL

trenching chainline speed control pattern

1шт.

16

199416A1

DECAL

plowing, plow speed control

1шт.

17

199417A1

DECAL

side console, attachments, rear wheel positioner and rear wheel position indicator

1шт.

18

199409A1

DECAL

warning, do not jump - use seat belt

1шт.

19

199418A1

DECAL

throttle

1шт.

20

199424A1

DECAL

supply, return

1шт.

21

175509A1

WARNING DECAL

jump start, starting in gear can cause death

1шт.
