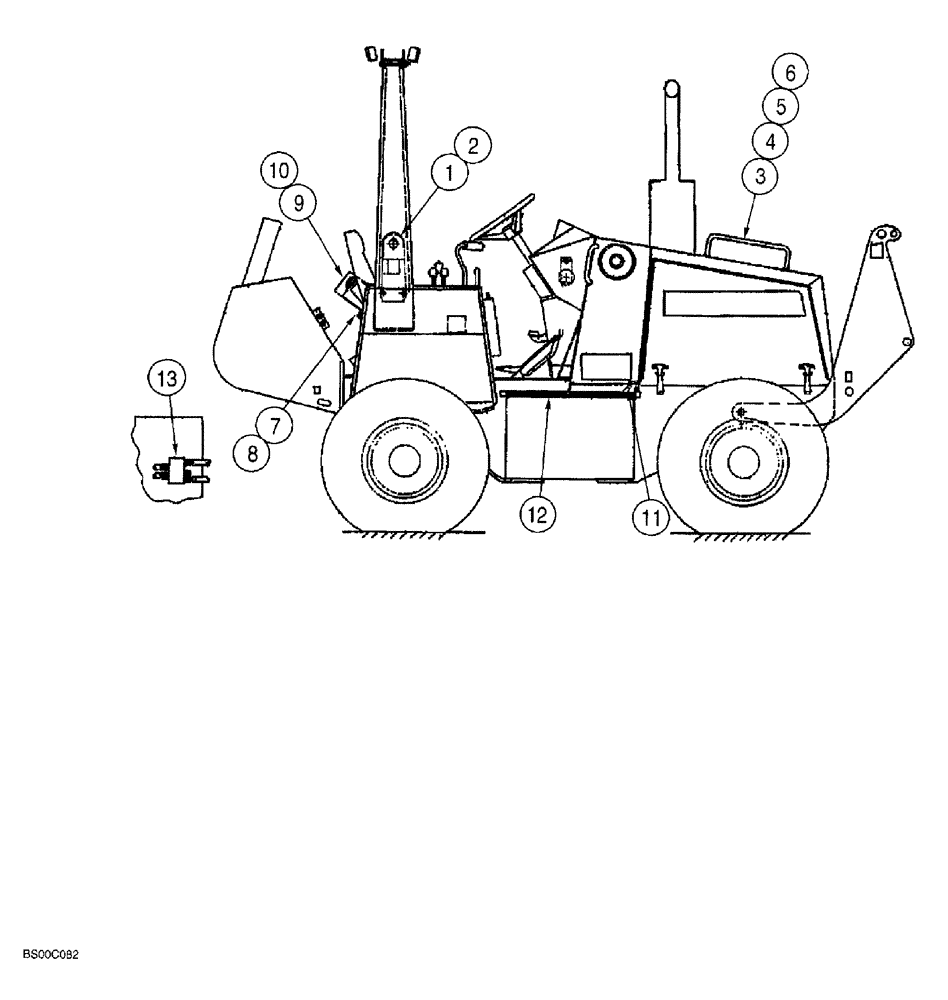

Запчасти Case 660 (09-08) - LIFT HOOKS, ASSIST HANDLE, LOWERING VALVE AND LOCKING FUEL CAP (660 TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

225509A1

EYE

HOOK lift, rear

2шт.

2

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

hex, 5/8 NC x 3 inch, grade 8

4шт.

3

223506A1

HANDLED SHAFT

HANDLE assist, front

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

6

231-4145

NUT,5/16"-18, GB

4шт.

7

223521A1

ANGLE

lock, filler neck cover

1шт.

8

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2шт.

9

223533A1

COVER

filler neck, hinged, hydraulic oil tank

1шт.

10

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

2шт.

11

108925A1

FILLER CAP

fuel, locking, includes two keys

1шт.

12

H431171

ADHESIVE STRIP

STRIP anti skid, 406 mm (16 inch) long, cut from H431205 bulk strip, see below

2шт.

13

199693A1

VALVE

hydraulic, lowering, used with trencher units

1шт.

H431205

ADHESIVE STRIP

anti skid, bulk, 635 mm (25 inch) long

1шт.
