(6-10) - TANDEM PUMP - H673751, FRONT DRIVE PUMP, HOUSING AND VALVES

Запчасти Case 660 (6-10) - TANDEM PUMP - H673751, FRONT DRIVE PUMP, HOUSING AND VALVES (06) - POWER TRAIN

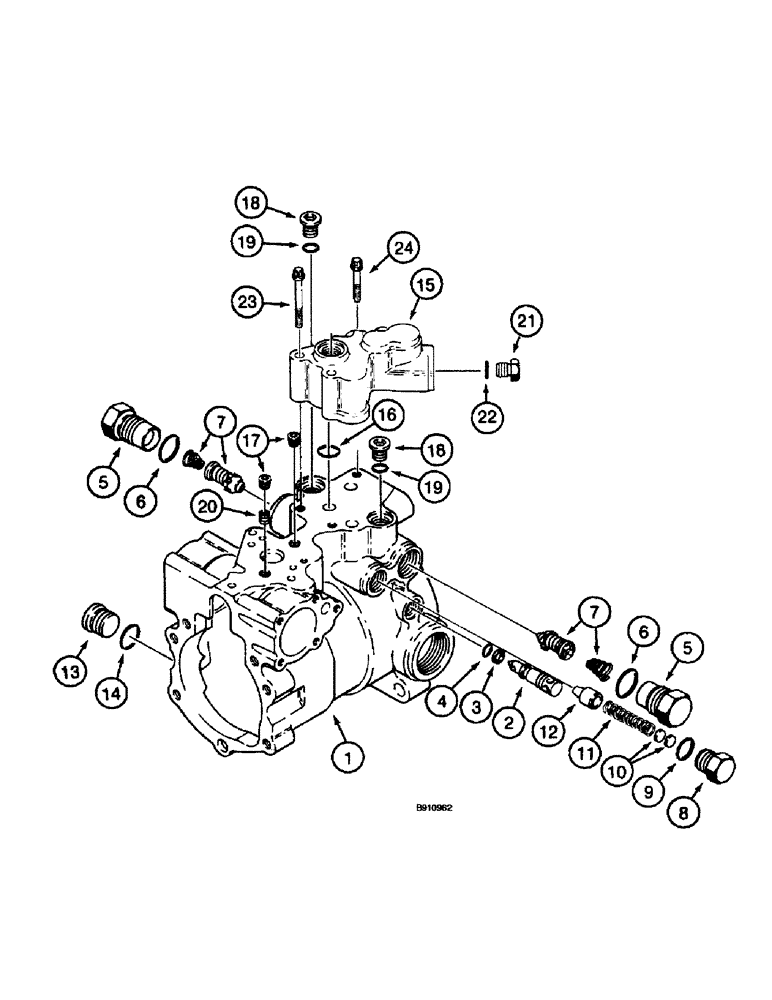

Схема запчастей Case 660 - (6-10) - TANDEM PUMP - H673751, FRONT DRIVE PUMP, HOUSING AND VALVES (06) - POWER TRAIN
9
19
5
11
15
2
18
16
12
22
5
6
21
18
4
19
7
8
1
6
20
7
24
13
14
10
23
3
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H673751

PUMP

ASSEMBLY - tandem, includes parts listed on Figs. 6-10 - 6-20, Includes: Ref. 1 - 24

1шт.

1

H436703

COVER

- front drive pump

1шт.

ITEM 1 IS NOT H436703. IT IS A HOUSING. NAPO TECH 1/10/00.

1шт.

2

H436099

VALVE

- bypass

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, bypass valve

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Bypass valve

1шт.

H436101

VALVE POPPET

VALVE ASSEMBLY - relief, 5000 psi, "A" and "B" ports, Includes: Ref. 6 and 7

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG - hex, special, Includes: Ref. 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - relief, pump

1шт.

8

N13266

PLUG

- hex, special

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

H407767

KIT

- shim, relief valve

1шт.

11

V38370

SPRING

- relief valve

1шт.

12

V38371

VALVE

POPPET - relief valve

1шт.

13

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 13 Hex Soc, 1 1/16"-12 ORB

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

N14069

ADAPTER

- filter

1шт.

16

H438322

O-RING

- filter adapter, special

3шт.

17

F23137

PLUG

- pipe, special

2шт.

18

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 19 Hex Soc, 9/16"-18 ORB

2шт.

20

H435774

PLUG

- orifice

1шт.

21

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 22 Hex Hd, 9/16"-18 ORB

1шт.

23

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT - 12 point flange, 5/16 NC x 2-1/4 inch, grade 8

2шт.

24

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - 12 point flange, 5/16 x 1-1/2 inch, grade 8

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 27
