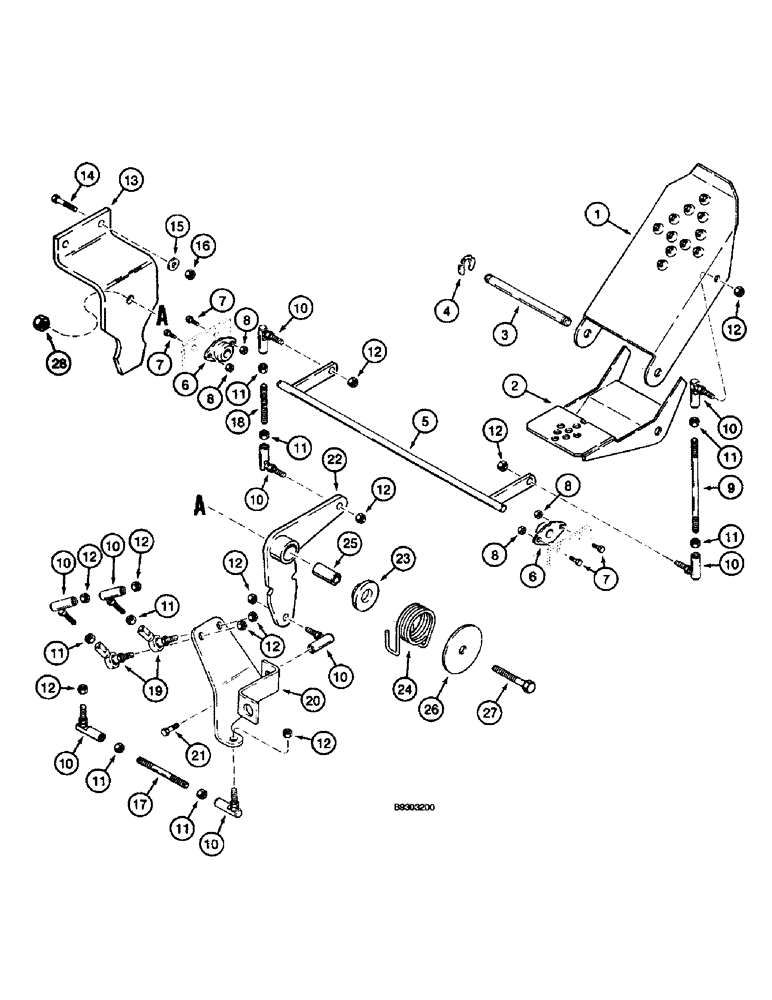

Запчасти Case 660 (6-04) - GROUND DRIVE CONTROLS, PEDALS (06) - POWER TRAIN

1

H403816

PEDAL

- forward ground drive control

1шт.

2

H672181

PEDAL

- heel, reverse ground drive control

1шт.

3

H403840

PIN

- pivot

1шт.

4

D143415

SNAP RING,0.50” ID, Klipring

RING - retaining, pedal pin

2шт.

5

H674223

SHAFT

- control, ground drive

1шт.

6

H755785

FLANGED BEARING,15.88mm ID

BEARING - flange

2шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

H437546

ROD

- pedal control

1шт.

10

A60307

JOINT

- ball, 3/8 inch NF, female

9шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

8шт.

12

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

11шт.

13

H437545

CRANK LEVER

BRACKET - bellcrank mounting

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

16

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

17

H436588

ROD

- linkage, stabilizer

1шт.

18

H437547

ROD

- linkage, bellcrank to neutral centering

1шт.

19

R47941

JOINT TURNING

JOINT - ball, male, 3/8 inch NF

2шт.

20

H674225

PLATE

BRACKET - mounting, cable drive

1шт.

21

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

22

H674224

PIVOT

BELLCRANK - cable drive

1шт.

23

D128616

BUSHING

- plastic

2шт.

24

H436303

SPRING

- centering, bellcrank

1шт.

25

H435694

SPACER

- 19 x 22 x 36.5 mm, bellcrank pivot

1шт.

26

H436215

WASHER

- flat, special, 13.4 x 80 x 3,4 mm

1шт.

27

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

28

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.
