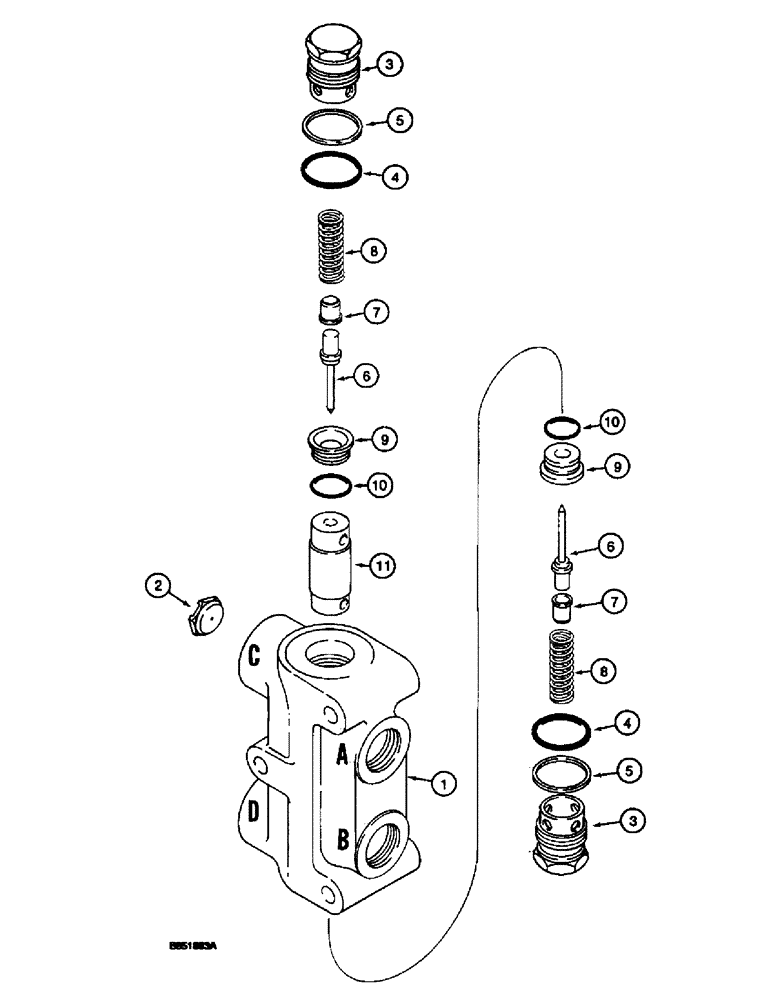

Запчасти Case 660 (5-16) - LOCKOUT VALVE - H672547 (05) - STEERING

H672547

VALVE

ASSEMBLY - lockout, steering, trencher boom lift and reel carrier lift, see Figs. 5-8, 8-74 or 8-28 for mounting of lockout valve in steering, trencher boom lift and reel carrier lift applications, respectively, Includes: Ref. 1 - 11

1-2-3шт.

1

NSS

NOT SOLD SEPARAT

BODY - lockout valve

1шт.

2

H270603

ORIFICE

PLATE - orifice, 0.055 inch

1шт.

A43525

PLUG

ASSEMBLY - lockout valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - lockout valve

1шт.

4

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Plug -116, 70 Duro, .737" ID x .103" Thk

1шт.

5

S302062

BACK-UP RING

RING - backup, plug O-ring

1шт.

6

F88777

PLUNGER

POPPET - lockout valve

2шт.

7

N13488

EYE

SEAT - spring

2шт.

8

A43533

VALVE SPRING

SPRING - poppet

2шт.

N13369

SEAT ASSY.

SEAT ASSEMBLY - poppet, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

N13489

PLUNGER

PISTON - lockout valve

1шт.
