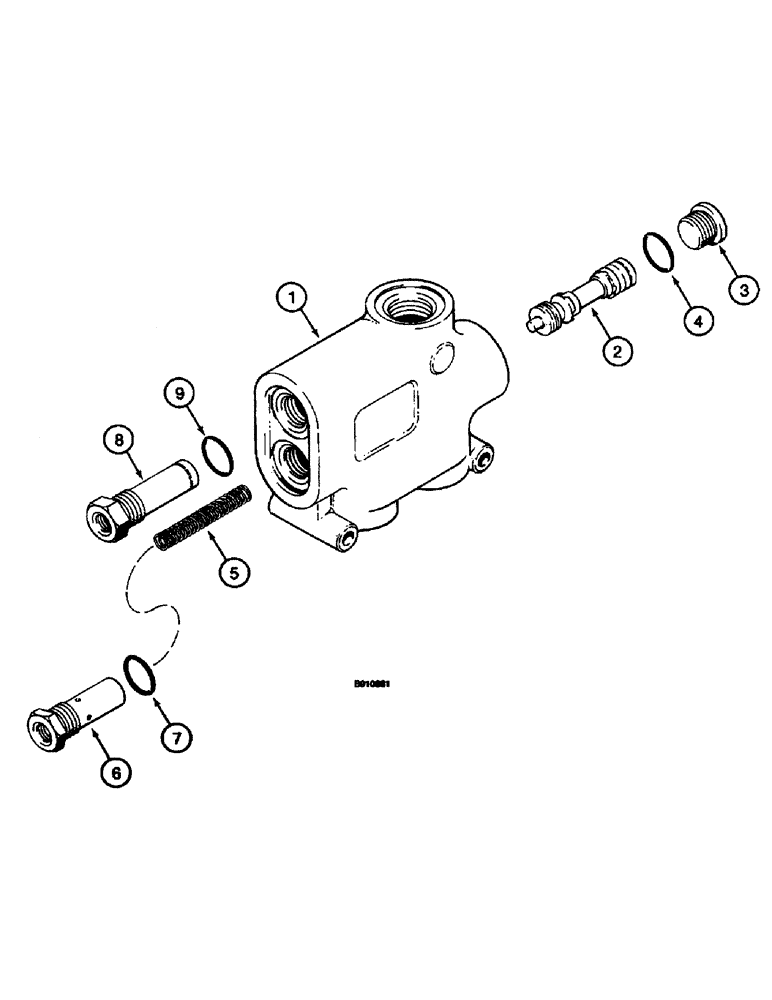

Запчасти Case 660 (5-14) - PRIORITY FLOW DIVIDER VALVE - H672904 (05) - STEERING

H672904

VALVE

ASSEMBLY - priority flow divider, see Fig. 5-6 for mounting, Includes: Ref. 1 - 9

1шт.

1

H436407

BODY

- priority flow divider valve

1шт.

2

H436366

SPOOL

- valve

1шт.

H436367

PLUG

ASSEMBLY - spool end, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - spool end

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

H436365

SPRING

- spool

1шт.

6

H436408

PLUG

- retaining, spool spring

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

N7163

CARTRIDGE

VALVE ASSEMBLY - relief, priority flow divider valve, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
