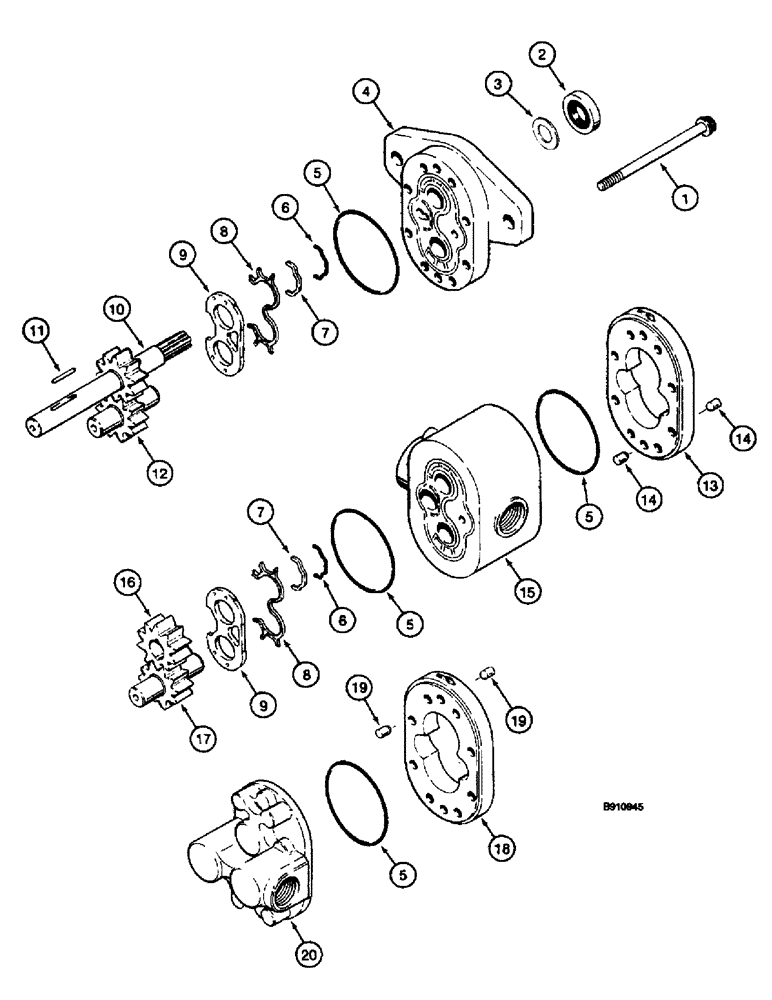

Запчасти Case 660 (5-12) - DUAL PUMP - H673753 (05) - STEERING

H673753

PUMP

ASSEMBLY - dual, see Fig. 5-6 for mounting, Includes: Ref. 1 - 20

1шт.

1

1960571C1

BOLT,12 Pt, 5/16" x 4 3/4"

- Ferry head, 5/16 NC x 4 inch

8шт.

2

H83733

SEAL

- shaft

1шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

3

N13135

WASHER

- special, shaft seal

1шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

4

H435657

COVER

- drive shaft end

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

4шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - molded

2шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - bearing

2шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - wear plate

2шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear, pump housing

2шт.

Part of Seal Replacement Kit, P/N N13450

1шт.

10

H438710

GEAR

AND SHAFT - drive, pump

1шт.

11

H438711

KEY

- drive gear shaft

1шт.

12

H438708

GEAR, IDLER

GEAR AND SHAFT - driven, pump, drive shaft end

1шт.

N14630

HOUSING

ASSEMBLY - gear, drive shaft end, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear, drive shaft end

1шт.

14

71120

VALVE

PIN - dowel, drive shaft end gear housing

4шт.

15

H435649

PLATE

BODY - pump, center

1шт.

16

H438709

GEAR

- slip fit, rear, drive gear shaft

1шт.

17

H438708

GEAR, IDLER

GEAR AND SHAFT - driven, pump, rear

1шт.

N14630

HOUSING

ASSEMBLY - gear, port end, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - gear, port end

1шт.

19

71120

VALVE

PIN - dowel, port end gear housing

4шт.

20

H435647

PLATE

COVER - pump, port end

1шт.

N13450

SEAL KIT

KIT - seal replacement, Includes: Ref. 2, 3, 5, 6, 7, 8 and 9

1шт.
