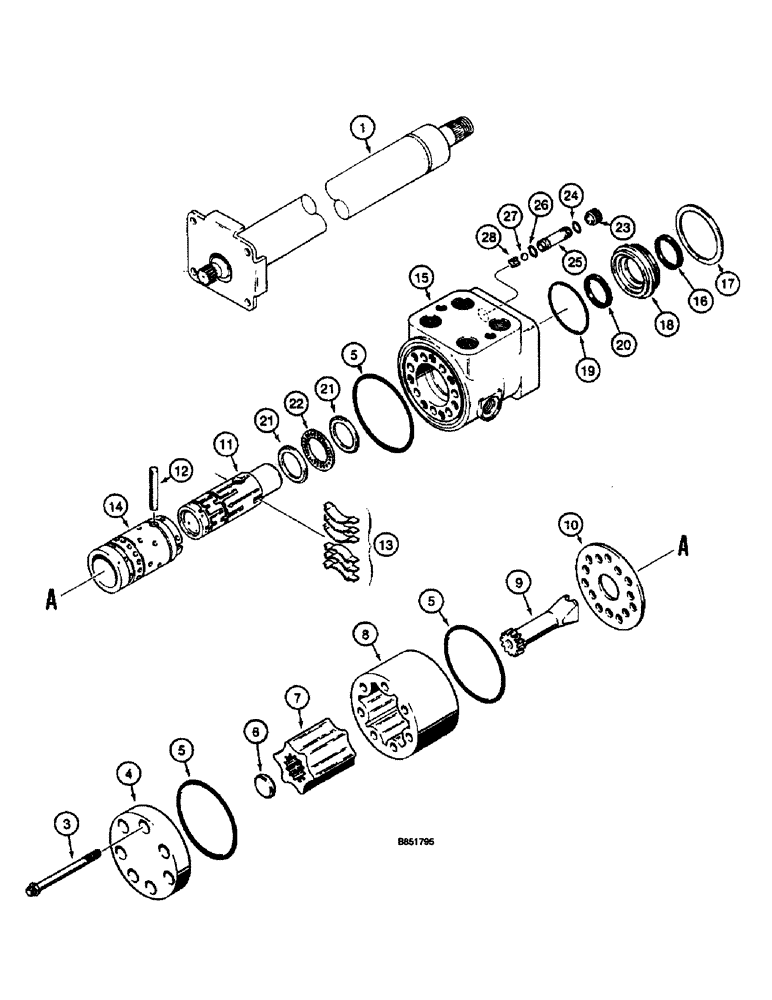

Запчасти Case 660 (5-10) - STEERING COLUMN AND VALVE (05) - STEERING

1

H672220

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

H672219

VALVE

ASSEMBLY - steering control, Includes: Ref. 3 - 28

1шт.

3

H189555

BOLT,M6 x 20mm, Cl 8.8

- 12 point, special

7шт.

4

D82809

COVER

CAP - end

1шт.

5

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- end cap

3шт.

Part of Seal Kit, P/N D82802

1шт.

6

K964246

SPACER

- drive shaft

1шт.

N13342

GEAR-SET

GEROTOR - set, steering control valve, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve

1шт.

8

NSS

NOT SOLD SEPARAT

STATOR - steering control valve

1шт.

9

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

10

S113037

PLATE

- spacer

1шт.

S115563

BODY

CONTROL ASSEMBLY - valve, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

12

L30888

PIN

- roll

1шт.

13

L30889

SPRING

- spool

6шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - steering control valve

1шт.

16

A28211

OIL SEAL

- gland , outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

17

S110169

WASHER

RING - retaining, gland

1шт.

18

S110170

BUSHING

GLAND - seal, spool

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N D82802

1шт.

20

201893H1

SEALING RING

SEAL - square section, gland, outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

21

D82804

RACE

- thrust, bearing

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller

1шт.

23

D82805

SET SCREW

SCREW - set, body

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

25

D82806

VALVE SEAT

SEAT - ball

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

- 5/16 ID x 1/8 inch wide, seat, inner

1шт.

Part of Seal Kit, P/N D82802

1шт.

27

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

28

L35368

RETAINER

- check ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 16, 19, 20, 24 and 26

1шт.
