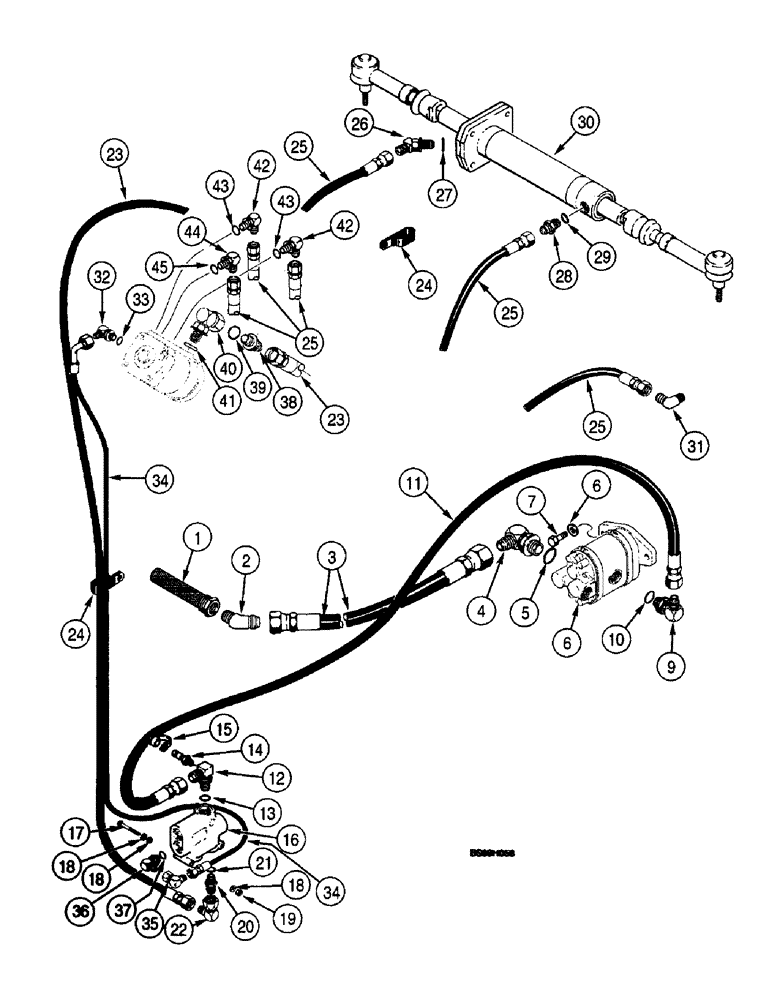

Запчасти Case 660 (5-08) - REAR STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

H151399

FILTER STRAINER

SCREEN - filter, suction

1шт.

2

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1-5/16-12 flare x 1 inch PT

1шт.

3

H438015

HOSE ASSY.

HOSE - 687 mm (27 inch) long, suction, Serial Range: reservoir-pump

1шт.

4

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

H673753

PUMP

ASSEMBLY - dual, parts list Fig. 5-12

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

H438004

HOSE

- 518 mm (20-3/8 inch) long, dual pump to attachment control valve

1шт.

12

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

13

H438130

ADAPTER

ELBOW - 90 degree, special, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

H434164

COUPLING

COUPLER - quick check

1шт.

16

H434163

DUST CAP

CAP - dust

1шт.

17

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figs. 8-18 - 8-26

1шт.

18

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

19

H426775

WASHER

- flat, special, hardened

3шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 21

1шт.

22

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree long, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 23

1шт.

24

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss

2шт.

25

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

Control Valve to Lockout Valve 6.35 mm ID x 685.40 mm, SAE 100R1

2шт.

26

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 27

3шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

H672547

VALVE

ASSEMBLY - lockout, steering, parts list Fig. 5-16

1шт.

29

H435885

LARGE PLATE

PLATE - lockout valve mounting

1шт.

30

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

31

H426775

WASHER

- flat, special, hardened

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

L60408

CLAMP

ASSEMBLY - valve mounting plate, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

CLAMP - valve mounting plate

1шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 37

3шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

38

H270603

ORIFICE

PLATE - orifice, 0.055 inch

1шт.

39

H438005

HOSE ASSY.

HOSE - 273 mm (10-3/4 inch) long, lockout valve to rear steering cylinder

2шт.

40

100530A1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, rear, parts list Fig. 6-42

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
