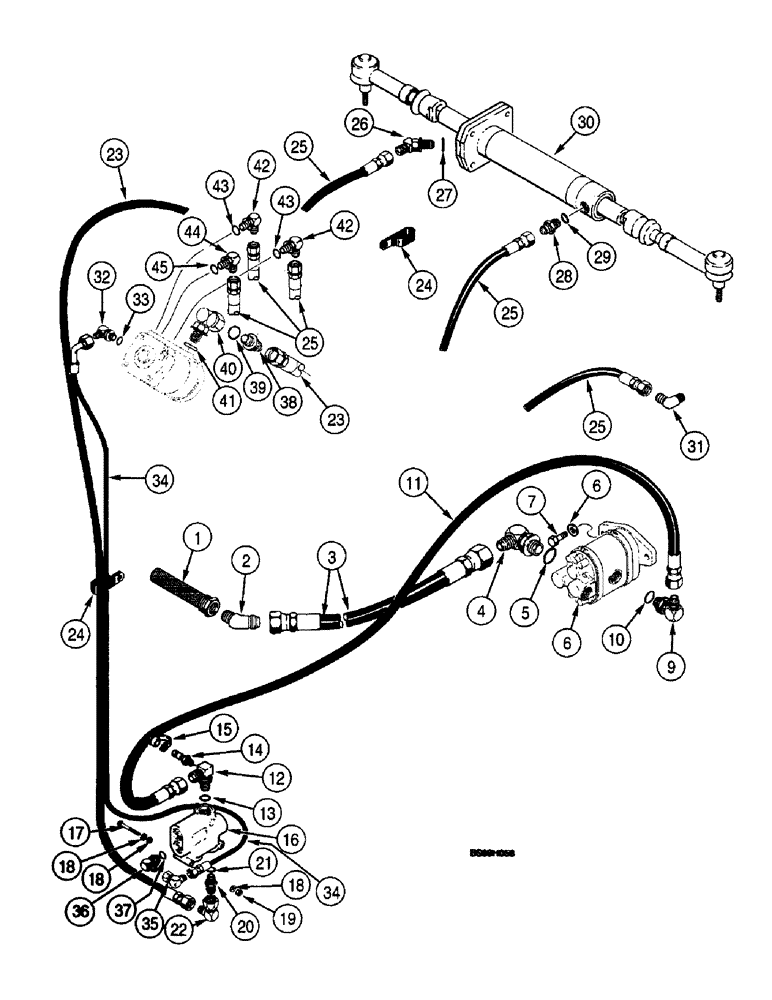

Запчасти Case 660 (5-07A) - FRONT STEERING HYDRAULIC CIRCUIT, WITH HOSES AT STEERING VALVE (05) - STEERING

1

H151399

FILTER STRAINER

SCREEN - filter, suction

1шт.

2

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1-5/16-12 flare x 1 inch PT

1шт.

3

H438015

HOSE ASSY.

HOSE - 687 mm (27 inch) long, suction, Serial Range: reservoir-pump

1шт.

4

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

H673753

PUMP

ASSEMBLY - dual, parts list Fig. 5-12

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

H438008

HOSE ASSY.

HOSE - 950 mm (37-3/8 inch) long, dual pump to priority flow divider valve

1шт.

12

H438129

ADAPTER

ELBOW - 90 degree, special, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

H434164

COUPLING

COUPLER - quick check

1шт.

15

H434163

DUST CAP

CAP - dust, coupler

1шт.

16

H672904

VALVE

ASSEMBLY - priority flow divider, parts list Fig. 5-14

1шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

18

H426775

WASHER

- flat, special, hardened

6шт.

19

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

23

111168A1

HOSE ASSY.

HOSE - 2100 mm (82-11/16 inch) long, flow divider to steering control valve

1шт.

24

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- P-type, 5/8 inch diameter, double

3шт.

25

111167A1

HOSE ASSY.

HOSE - 1400 mm (55-1/8 inch) long, steering control valve to steering cylinder and, Serial Range: return-bulkhead

3шт.

26

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

100530A1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, front, parts list Fig. 6-42

1шт.

31

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

32

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 33

1шт.

33

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

34

H437989

HOSE ASSY.

HOSE - 1930 mm (76 inch) long, steering control valve, to priority flow divider

1шт.

35

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

1шт.

36

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 37

1шт.

37

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

38

L104449

LOCK VALVE

VALVE - check, steering, Includes: Ref. 39

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

40

111865A1

ELBOW

- 90 degree, special, Includes: Ref. 41

1шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

42

700701358

ELBOW

- 90 degree long, 3/4-16 flare x adj O-ring boss, Includes: Ref. 43

2шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 45

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
