Запчасти Case 660 (5-02) - STEERING WHEEL AND MOUNTING (05) - STEERING

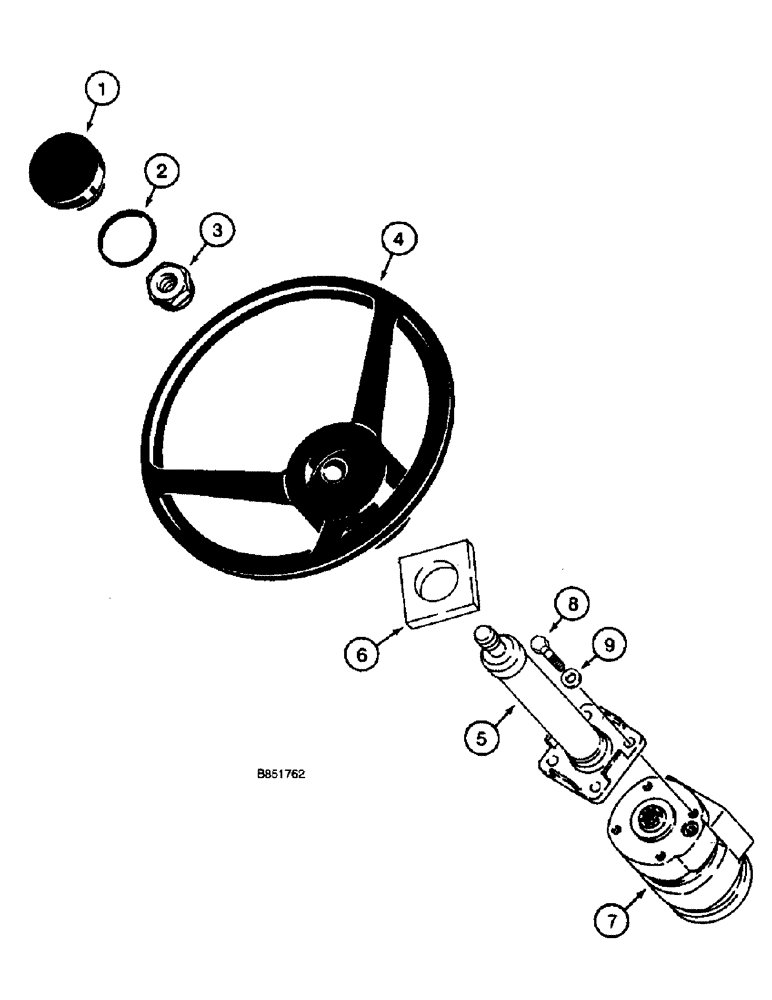

Схема запчастей Case 660 - (5-02) - STEERING WHEEL AND MOUNTING (05) - STEERING
9
4
6
7
2
8
1
5
3

Артикул

Название

Примечание

Количество

1

A62210

PLUG

CAP - steering wheel

1шт.

2

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Steering wheel cap -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

Tractor

1шт.

5

H672220

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

6

H433646

SPACER

- steering column

1шт.

7

H672219

VALVE

ASSEMBLY - steering control, parts list Fig. 5-10

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

Выбрано товаров: 9
