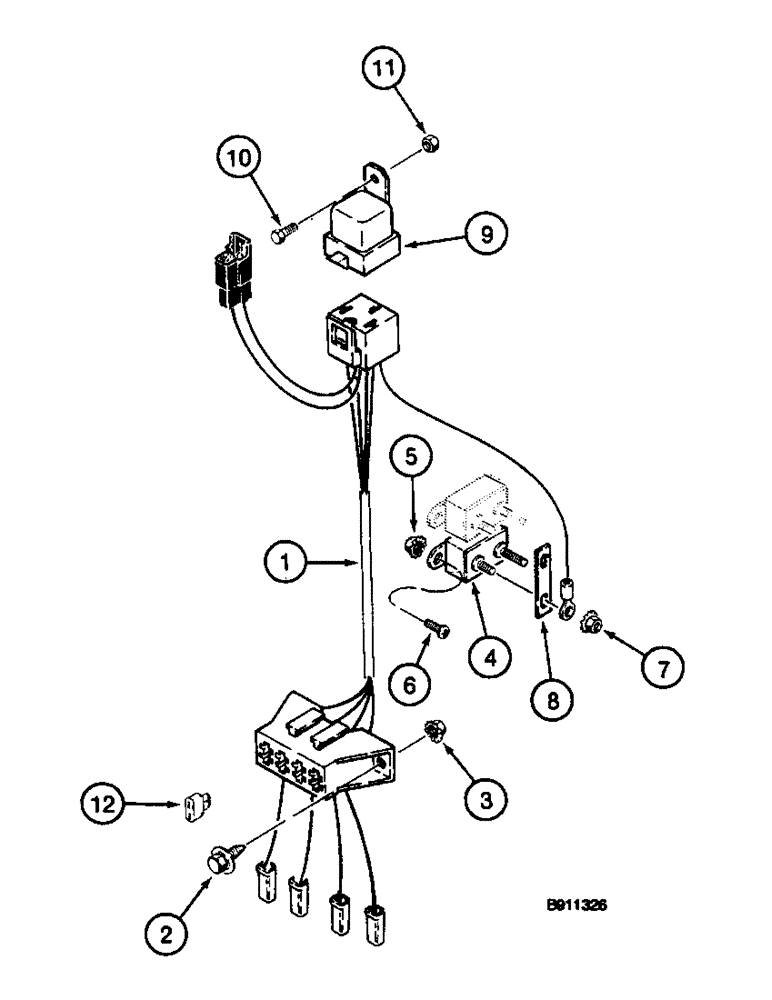

Запчасти Case 660 (4-20) - ACCESSORY ELECTRICAL POWER HARNESS (04) - ELECTRICAL SYSTEMS

1

H674547

HARNESS

- accessory electrical power

1шт.

2

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

- machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC

2шт.

4

A22877

BREAKER,40A

- circuit, 40 amp

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

6

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

1шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

8

245860C1

BAR

- circuit breaker

1шт.

9

D128310

RELAY

- 30 ampere

1шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

11

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

12

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

2шт.
