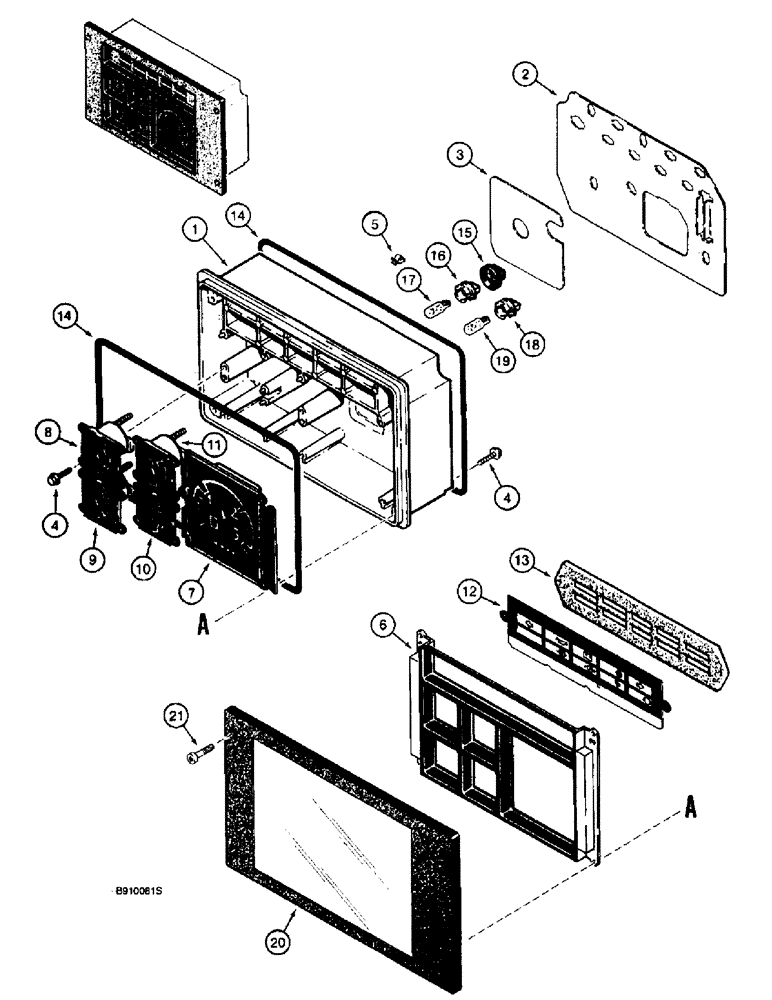

Запчасти Case 660 (4-18) - INSTRUMENT CLUSTER - A187966 (04) - ELECTRICAL SYSTEMS

A187966

CLUSTER

ASSEMBLY - instrument, 12 volt, Includes: Ref. 1 - 20

1шт.

A191114

HOUSING

ASSEMBLY - instrument cluster, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - instrument cluster

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT - printed, instrument cluster

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - housing

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - special

12шт.

5

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

6

A45007

LENS

COVER - instrument cluster

1шт.

7

N13543

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

8

N13542

GAUGE

- water temperature

1шт.

9

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

10

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

11

A187987

GAUGE

- hydraulic oil temperature

1шт.

12

N13544

LENS

- identification, warning lamps

1шт.

13

D71342

GASKET,3.05mm Thk

- lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

15

D71344

COVER

BOOT - rubber

3шт.

16

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

17

W10478

LAMP

BULB - lamp, No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

9шт.

19

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

9шт.

20

N14225

SHIELD

- instrument cluster

1шт.

21

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.
